Introduction Of High-precision Plate Shear: Characteristics, Applications and Design
Time:2023-10-27
Visits:168

In the sheet metal processing industry, shearing machines are a very important equipment. It is a machine that can cut various metal materials into different shapes and sizes. And high-precision plate shear machine is one of the special types of shearing machines. It has higher accuracy and a wider range of applications.



This article will provide a detailed introduction to the characteristics, application, design, and usage of high-precision shearing machines.



1. The Characteristics of High Precision Plate Shears

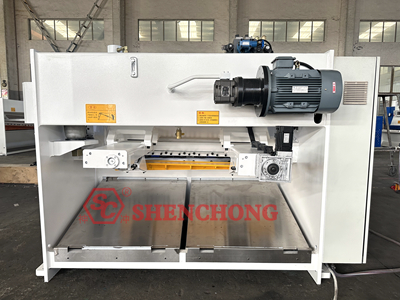

CNC High-precision Plate Shear Machine QC11K-4X1600 ELGO


Compared with traditional sheet metal shearing machines, high-precision plate shearing machines have the following characteristics:


- Higher accuracy

The high-precision metal shear machine adopts advanced control and transmission systems, which can achieve high-precision shearing with an error of ± 0.1mm.



- Higher degree of automation

The high-precision cutting machine adopts a CNC system for control, which can achieve automated cutting, reduce manual intervention, and improve production efficiency.



- Wider application range

High precision plate shearing machines can be applied to various metal plates of different materials and thicknesses, such as stainless steel plates, aluminum plates, nickel plates, cobalt plates, etc., and can meet the needs of different industries and users.



Click here to know SC high-precision shearing cases:

Nickel Plate Automatic Shearing Unit: High Speed & High Precision

Fully Automatic Cobalt Plate Shear Machine


2. Application Scenarios Of High Precision Metal Shearing Machines


High precision sheet metal shears are mainly used in the following scenarios:



- Manufacturing industry

Manufacturing is one of the most widely used industries for metal cutting machines, especially in areas such as sheet metal processing, mechanical manufacturing, and automotive manufacturing.

High precision guillotine shear machines can provide higher precision cutting, improving product quality and production efficiency.



- Construction industry

The construction industry requires a large amount of metal materials and accessories. High-precision plate shears can provide more accurate cutting, improve building quality and construction efficiency.





- Research institutes

Research institutes need to continuously conduct material testing and processing. High-precision shearing machines can provide more accurate experimental conditions and more efficient machining processes.



- Automobile maintenance

The field of automotive maintenance requires the use of various shapes and sizes of plates to repair vehicles, and high-precision plate cutters can provide more accurate cutting, improving maintenance quality and efficiency.



3. Design Concept of High Precision Plate Shearing Machine


The design concept of high-precision metal plate shear mainly includes the following aspects:


CNC High-precision Plate Shear Machine Back Look


- Transmission System

The high-precision shearing machine adopts advanced transmission system to ensure the stability and accuracy of the machine.

Common transmission methods include screw drive, gear drive, chain drive, etc. Choose the appropriate transmission method based on different application scenarios and material requirements.



- Control System

The control system is the core part of high-precision shearing machines. It can achieve automatic control and precise displacement control. The control system can adopt CNC systems, PLC control systems, etc.



- Shearing Blade

The cutting blade tool is one of the important components of high-precision shearing machines. It needs to have characteristics such as high strength, high hardness, and good wear resistance.

According to different material and thickness requirements, choose cutting tools of different sizes and materials.



- Machine Frame Structure

The rack is the fundamental part of high precision metal shears. It needs to have characteristics such as high strength, high stability, and good vibration resistance.

The design of the rack structure needs to consider factors such as the accuracy, weight, and usage environment of the machine.



4. High-precision Shear Machine Actual Usage


In practical use, high-precision plate shear machines have shown good performance and stability.



Example 1:

In a certain automobile manufacturing enterprise, high precision guillotine shears are used to cut steel plates into components of different shapes and sizes. The precise cutting and automation control of this machine reduces manual operations and errors, improves production efficiency and product quality.



Example 2:

In a certain research institution, high-precision hydraulic shear machines are used for material testing and processing research. The high precision and efficiency of this machine have shortened the testing cycle and processing time, providing researchers with more accurate test results and more efficient processing methods.



In a word, high-precision plate shear, as an advanced mechanical processing equipment, have the advantages of high precision, high efficiency, and automated control. It is widely used in fields such as manufacturing, construction, and research institutes, playing an important role in improving production efficiency, product quality, and construction speed.



With the continuous development of technology, it is believed that in the future, the technology of high-precision hydraulic guillotine CNC shearing machines will become more advanced and their application scope will also become more extensive.
