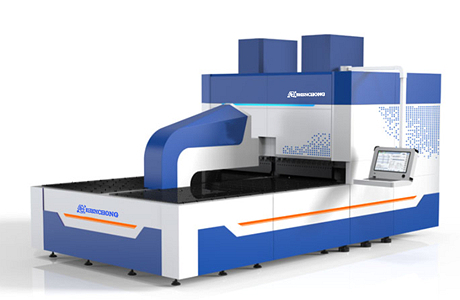

As the sheet metal processing industry develops towards intelligence, automation, and high precision, traditional CNC bending machines are gradually failing to meet the demands of modern manufacturing for efficiency, precision, and flexible production. Servo CNC panel bender for sale, as a new generation of intelligent sheet metal forming equipment, integrate servo drive technology, CNC technology, automation control technology, intelligent compensation technology, and industrial internet technology. They achieve automatic sheet metal feeding, positioning, pressing, bending, and flipping, making them a crucial piece of equipment in modern sheet metal processing.

Servo CNC panel benders are widely used in:

- Electrical cabinet industry

- Communication cabinet industry

- Elevator manufacturing industry

- File cabinet industry

- Steel furniture industry

- Kitchen equipment industry

- Cold chain equipment industry

- New energy industry

- Rail transit industry

- Building curtain wall industry

- Medical equipment industry

Their biggest advantage is:

Complex workpieces can be automatically bent in a single clamping operation, significantly improving production efficiency and product consistency.

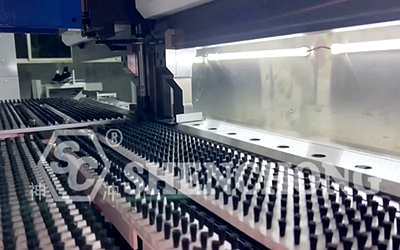

1. Working Principle of Servo CNC Panel Bender Machine

1) Automatic Positioning System

The equipment is equipped with a high-precision servo-controlled back gauge system.

Automatically completes:

- X-axis positioning

- Y-axis positioning

- R-axis lifting

- Z-axis lateral movement

Positioning accuracy can reach: ±0.01mm～±0.05mm

Ensuring accurate positioning of each bending step on the sheet metal.

2) Pressure System

During bending: The pressure beam automatically clamps the sheet metal.

Features:

- Automatic clamping

- Automatic release

- Automatic compensation

Avoids errors caused by manual material handling.

3) Servo Bending System

The bending beam is driven by a high-performance AC servo motor.

Compared to hydraulic drive:

- Faster response speed

- Higher repeatability

- Lower energy consumption

- Lower noise

Achieves high-precision bending.

4) Automatic Rotation System

Some high-end models are equipped with:

- Automatic Flanging Mechanism

- Automatic Rotation Mechanism

Achieves:

- Single-sided bending

- Double-sided bending

- Four-sided bending

- Multi-sided bending

No manual workpiece flipping required.

5) Intelligent Control System

The system automatically calculates:

- Bending sequence

- Interference detection

- Springback compensation

- Processing path

Achieving truly intelligent bending.

2. Core Structure of the Servo CNC Bending Center

1) Machine Frame

Adopts:

Integral welded structure, Finite element analysis design, Vibration aging treatment

Features:

High rigidity, Small deformation, Long-term stability, Guaranteed equipment lifespan exceeding 15 years.

2) Bending Beam System

Core components include:

Upper bending beam, Lower bending beam, Precision guide rail

Ensures:

Synchronous motion, Backlash-free transmission, High repeatability positioning accuracy

3) Servo Drive System

Main configuration:

Yaskawa servo motors (Japan), Mitsubishi servo motors (Japan), Siemens servo motors (Germany), Lenze servo motors (Germany)

Features:

Fast response, Precise control, Low maintenance cost

4) Automatic Material Holding System

Uses multiple independent material clamps.

Advantages:

Automatically adjusts the material holding position, Prevents sheet metal slippage, Improves bending quality

5) Intelligent Compensation System

Automatic compensation:

Sheet metal thickness error, Material springback, Machine tool deflection.

Ensures consistent bending angles.

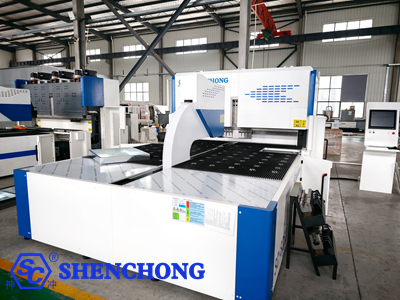

3. 10 Advantages of Automatic Electric Panel Benders

Advantage 1: Increase in Production Efficiency

Traditional Bending Machines:

Requires:

- Alignment

- Positioning

- Flipping

- Material handling

One workpiece may take: 3–10 minutes

While Bending Centers: Automatically complete all processes.

Processing efficiency increased: 3 to 5 times or more.

For example:

One cabinet door panel:

Traditional Bending Machine: 5 minutes

Bending Center: 30–60 seconds

Completed in 30 to 60 seconds.

Advantage 2: Reduced Labor Costs

Traditional Bending:

Typically requires:

- 1 operator

- 1 assistant

Large workpieces may even require:

3–4 people working together

While Bending Centers:

Only requires: 1 person for material handling

To complete production.

Labor costs reduced: Over 50%.

Advantage 3: High Bending Precision

Bending Angle Precision: ±0.2°

Dimensional Precision: ±0.1mm

Repeatability: ±0.02mm

Especially Suitable for:

Precision cabinets, medical equipment, electrical enclosures, and other high-requirement industries.

Advantage 4: Excellent Product Consistency

Traditional Bending:

Highly affected by manual labor.

Different work groups: Significant product quality differences.

Bending Center:

Program-controlled

Achieves:

Consistency within the same batch, consistency across shifts, and long-term consistency.

Product qualification rate can reach: over 96%.

Advantage 5: Reduced Material Waste

Automatic positioning system avoids:

Positioning errors, repeated bending, and rework.

Material utilization rate increased: 3%–10%.

Especially significant for stainless steel.

Advantage 6: One-time Forming of Complex Workpieces

Can complete:

Bending of complex parts such as cabinets, doors, and drawers.

No need for multiple clamping operations.

Advantage 7: Strong Flexible Production Capability

When changing products: Only a program call is needed.

No need for extensive mold adjustments.

Especially suitable for:

Multiple product varieties, small batches

Production modes.

Advantage 8: Significant Energy Savings

Servo system outputs power on demand.

Compared to hydraulic equipment:

Energy saving: 30%–70%.

Significant annual electricity cost savings.

Advantage 9: Low Noise

Traditional hydraulic bending machine: 75–85dB

Servo bending center: 60–70dB

Significantly improved working environment.

Advantage 10: High Degree of Intelligence

Supports:

- CAD import

- CAM programming

- MES connection

- ERP connection

- Industry 4.0

Enabling the construction of a digital factory.

4. Featured Functions of Servo CNC Bending Centers

Automatic Programming Function

Import:

- DXF

- DWG

- STEP

System Automatic Generation:

- Bending Sequence

- Processing Path

- Reduced Programming Time

Automatic Interference Detection

Automatic Simulation Before Processing

Avoid:

- Workpiece Collision

- Die Collision

Improved Safety

Automatic Angle Compensation

Based on Material:

- Carbon Steel

- Stainless Steel

- Aluminum Plate

Automatically Adjusts Bending Parameters.

Ensures Accurate Angles.

Database Management

Saving:

- Thousands of Product Programs.

- Enables Quick Production Switching.

- Remote Diagnostic Function

Through Network, Manufacturers Can Remotely:

- Fault Diagnosis

- Parameter Optimization

- Software Upgrade

Reduced Downtime.

5. Industry Application Analysis of Servo CNC Bending Centers

1) Electrical Cabinet Industry

Products:

- High and Low Voltage Distribution Cabinets

- Switchgear

- Control Cabinets

Features:

- Multiple Bending Edges

- High Precision

The bending center can complete:

Four-sided bending in one operation.

2) Communication Cabinet Industry

Products:

- Server cabinets

- Network cabinets

- Data center cabinets

Requirements:

Exquisite appearance, uniform dimensions, significant advantage of a bending center.

3) Steel Furniture Industry

Includes:

File cabinets, lockers, storage cabinets

Large-volume production.

Especially suitable for automated production.

4) Elevator Industry

Products:

Elevator door panels, elevator cars

Requirements:

High surface quality, high bending consistency, bend center meets requirements.

5) New Energy Industry

Includes:

Energy storage cabinets, charging piles, battery boxes

One of the fastest growing application areas.

6) Rail Transit Industry

Products:

Control boxes, electrical cabinets, vehicle body accessories

Requirements:

High precision, high reliability, significant advantage of a bending center.

7) Medical Equipment Industry

Products:

Medical cabinets, testing equipment enclosures

Requirements:

Refined appearance, strict tolerances

Suitable for high-end servo bending centers.

8) Kitchen Equipment Industry

Products:

Stainless steel workbenches, disinfection cabinets, commercial kitchenware

Significantly improves processing efficiency.

6. Comparison between Servo CNC Panel Bender and Traditional Bending Machine

Comparison Table:

7. Future Development Trends

Future servo CNC panel bender machines will develop in the following directions:

1) Fully Automated and Unmanned Operation

Combined with:

- Robot loading and unloading

- AGV logistics system

Achieving unmanned production.

2) AI Intelligent Bending

Automatic optimization by artificial intelligence:

- Process parameters

- Bending sequence

- Springback compensation

Further improving efficiency.

3) Digital Twin Technology

Achieving:

Virtual machine setup

Virtual trial production

Reducing trial and error costs.

4) Smart Factory Integration

With:

- ERP system

- MES system

- WMS system

Full interconnection.

5) Cloud Platform Management

Achieving:

- Remote monitoring

- Remote maintenance

- Data analysis

Improving equipment utilization.

8. Conclusion

Servo CNC bending centers are an important representative of sheet metal forming equipment moving from "automation" to "intelligence". Compared to traditional hydraulic CNC bending machines, servo CNC panel benders offer higher processing precision, faster production efficiency, lower energy consumption, and better product consistency. They also enable one-time forming of complex workpieces and flexible production.

For industries such as electrical cabinets, communication cabinets, steel furniture, elevators, new energy storage cabinets, charging piles, medical equipment, and rail transportation, servo CNC bending centers have become crucial equipment for enhancing enterprise competitiveness. Especially given the current backdrop of rising labor costs, increasing personalized orders, and rapid development of intelligent manufacturing, adopting servo CNC bending centers not only reduces production costs but also helps enterprises achieve digital transformation and smart factory construction.

In the long run, servo CNC panel bending centers will deeply integrate with robots, intelligent warehousing, laser cutting machines, MES systems, and other equipment to form a complete intelligent sheet metal production line, becoming the core direction for the future development of the sheet metal manufacturing industry.
