Judging the shearing machine quality cannot be based solely on price, appearance, or whether it can "cut." It requires a comprehensive assessment from multiple dimensions, including structure, precision, stability, reliability, blade quality, control system, hydraulic system, processing technology, ease of maintenance, energy consumption, safety, and actual test shearing results. This is because a shearing machine is essentially a high-load, high-impact, and highly repetitive metal processing device. Short-term usability does not guarantee long-term usability, nor does it guarantee durability, high precision, or few malfunctions.

A truly high-quality shearing machine should meet three core requirements: realistic shearing capacity, stable shearing precision, and long-term reliable operation. The market offers numerous shearing machine brands with vastly different prices, ranging from several thousand to millions of US dollars. Many users focus only on price and specifications when purchasing, neglecting the true differences in equipment quality.

In reality, two shearing machines with the same nominal specifications (e.g., 6×3200mm and 12×4000mm) can have performance and lifespan differences of several times. So, how can we scientifically and comprehensively judge the quality of a shearing machine?

Below, we will conduct an in-depth analysis from multiple dimensions, including structural design, manufacturing process, hydraulic system, electrical system, control system, shearing accuracy, stability, durability, safety, and after-sales service.

1. Core Standards for Shearing Machine Quality Evaluation

Shearing machines are one of the most basic and important pieces of equipment in the metal sheet processing industry, widely used in sheet metal manufacturing, steel structures, machinery manufacturing, power equipment, elevators, automotive parts, home appliances, shipbuilding, and rail transportation.

For businesses, choosing a high-quality plate shearing machine not only affects processing precision and product quality but also directly impacts production efficiency, operating costs, and equipment lifespan.

To judge the quality of a shearing machine, the following core indicators are key:

1) Shearing Accuracy

Including:

- Shearing dimensional accuracy

- Shearing straightness

- Shearing perpendicularity

- Shearing burr size

High-quality shearing machine:

Dimensional error ≤ ±0.2mm

Straightness error ≤ 0.1mm/m

Minimal burr height

Low-quality equipment:

- Large fluctuations in shearing dimensions

- Uneven edges of the sheet metal

- Obvious burrs

2) Equipment Stability

Mainly manifested in:

- Stability during long-term continuous operation

- Fluctuations in hydraulic pressure

- Accurate back gauge positioning

High-quality equipment: Maintains consistent accuracy for more than 8 hours of continuous operation.

Inferior equipment: Dimensional drift occurs after a period of operation.

3) Service Life

High-quality shearing machine:

- Main unit lifespan 15-20 years or more

- Hydraulic system lifespan 10 years or more

Low-quality equipment:

- Severe wear begins to appear in 3-5 years

4) Failure Rate

The failure rate directly reflects the manufacturing level.

Premium Brands:

- Annual failure rate less than 5%

Ordinary Equipment:

- Frequent oil leaks

- Frequent electrical failures

2. Frame Quality Assessment

The frame is the "skeleton" of the sheet metal shearing machine.

It accounts for approximately 30% or more of the total machine value.

1) Steel Plate Material

High-quality manufacturers use:

- Q345B

- Q355B

High-end models use:

- Low-alloy high-strength steel

Features:

- High strength

- Strong resistance to deformation

Low-end equipment:

- Ordinary Q235 steel

- Insufficient strength

Prone to deformation after long-term use.

2) Frame Thickness

Observe:

- Side plate thickness

- Worktable thickness

- Crossbeam thickness

High-quality equipment: Significantly heavier.

For example: 12×4000 hydraulic shearing machine

High-quality machine: Approximately 12000kg

Ordinary machine: Approximately 9000kg

The difference can be up to 30%.

3) Welding Quality

Inspection:

- Is the weld uniform?

High-quality equipment:

- Fish-scale pattern weld

- No slag inclusions

- No porosity

- Is the weld full?

The weld is continuous and complete.

4) Overall Heat Treatment

This is an important step often overlooked by users.

High-quality manufacturers:

- Overall annealing treatment

Purpose:

- Eliminates welding stress

- Prevents deformation

Without annealing:

- The frame is prone to deformation after a few years.

3. Quality Assessment of the Tool Holder System

The tool holder determines the shearing machine quality.

1) Guide Rail Structure

High-quality equipment:

- Three-point roller guide rail

Features:

- Low friction

- High precision

Ordinary equipment:

- Slider guide rail

- Wears out faster

2) Tool Holder Rigidity

Inspection Method:

Observe when shearing thick plates:

- Vibration

- Oscillation

The stronger the rigidity:

- The better the sheared section

3) Tool Holder Clearance

High-quality equipment:

- Automatic clearance adjustment

Ordinary equipment:

- Manual adjustment

- Larger error

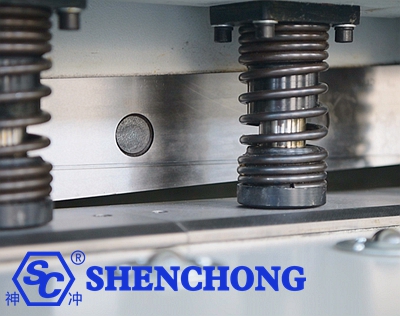

4. Blade Quality Assessment

The blade directly affects the cut quality.

1) Blade Material

High-Quality Blades:

- 6CrW2Si

- Cr12MoV

- H13

Premium Blades:

- SKD11

2) Heat Treatment Process

Hardness:

- HRC58~62

Too low hardness:

- Easily wears out

Too high hardness:

- Easily chips

3) Blade Life

High-Quality Blades:

Can withstand hundreds of thousands of shearing cycles.

5. Hydraulic System Quality Assessment

The hydraulic system is the core power source of the shearing machine.

1) Hydraulic Component Brands

International Brands:

- Bosch Rexroth

- Yuken

- Parker

Their quality is significantly superior to generic brands.

2) Hydraulic Pumps

High-quality equipment:

- Low-noise piston pumps

Noise level:

- Approximately 70dB

Ordinary equipment:

- Above 80dB

3) Seals

High-quality brands:

- German seals

- Japanese seals

Features: Long-term leak-free operation.

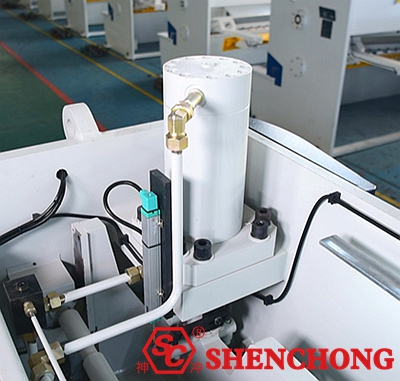

4) Cylinder Quality

Inspection:

- Chrome plating quality

- Machining accuracy

- Coaxiality

High-quality cylinders: No significant leakage for over 10 years.

6. Electrical System Quality Assessment

The electrical system determines reliability.

1) Electrical Brands

High-Quality Configuration:

- Schneider Electric

- Siemens

- ABB

2) Wiring Quality

Observation:

- Neatness

- Are there cable trays for protection?

High-Quality Equipment: Clear and standardized wiring.

3) Cabinet Design

High-Quality Cabinets:

- Dustproof

- Good heat dissipation

- Easy maintenance

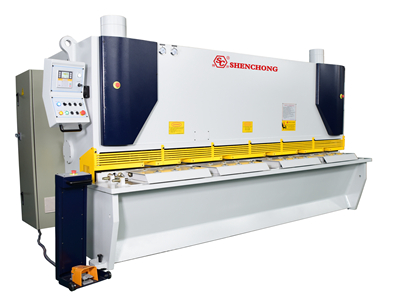

7. CNC System Quality Assessment

Modern shearing machines are becoming increasingly intelligent.

1) Backgauge Accuracy

High-Quality Equipment:

- Positioning Accuracy: ±0.05mm

- Repeatability: ±0.02mm

2) Servo Control

High-End Equipment:

- AC Servo Drive

Advantages:

- Fast

- Accurate

- Stable

3) User Interface

High-Quality System Features:

- Multi-language interface

- Graphical programming

- Parameter memory

- Simple operation

8. Shearing Performance Testing

A trial run is mandatory before purchase.

1) Trial Shearing of Thin Plates

Example: 1mm Stainless Steel

Observations:

- Whether there is tensile deformation

- Whether there are burrs

2) Trial Shearing of Medium-Thick Plates

Example: 6mm Carbon Steel

Observations:

- Surface finish of the sheared surface

- Dimensional consistency

3) Continuous Shearing Test

Continuous shearing more than 100 times.

Checks:

- Whether the accuracy changes

- Whether the oil temperature is too high

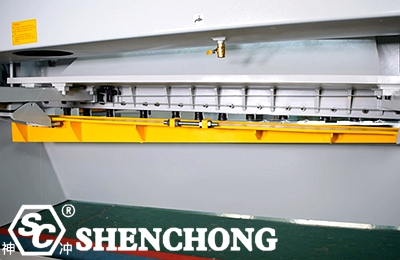

9. Quality Assessment of Backgauge System

The backgauge determines dimensional accuracy.

1) Lead Screw

High-quality equipment:

- Ball screw

Advantages:

- High precision

- Low wear

2) Guide Rail

High-quality configuration:

- Linear guide rail

- More stable positioning

3) Servo Motor

High-quality brands:

- Yaskawa

- Panasonic

- Siemens

10. Safety Performance Assessment

Excellent equipment is not only efficient but also safe.

1) Photoelectric Protection

High-end equipment is equipped with:

- Light curtain protection system

- Prevents misoperation

2) Emergency Stop System

Requirements:

- Rapid response

- Reasonable layout

3) Guardrail Design

Prevents operators from accidentally entering dangerous areas.

11. Energy Consumption Level Assessment

Modern manufacturing is increasingly focused on energy conservation.

Ordinary hydraulic systems

Continuously consume high energy.

Servo Hydraulic System

Energy Saving:

30%~60%

Noise Reduction:

Over 20%

Heat Reduction:

Over 40%

12. Brand and Manufacturing Capability Assessment

Key Focus Areas When Examining a Manufacturer:

1) Production Scale

Including:

- Factory Area

- Number of Processing Equipment

2) Core Processing Equipment

Does the manufacturer possess:

- Gantry Machining Center

- Floor-type Milling Machine

- CNC Grinding Machine

3) Quality Management System

Is the manufacturer certified:

- ISO9001

- CE Certification

4) Export Experience

Manufacturers with large export volumes:

Usually have higher manufacturing standards.

13. After-Sales Service Capability Assessment

Many users only look at the equipment price and ignore the value of service.

In reality:

During the equipment's lifecycle,

After-sales value often exceeds the purchase price difference.

Key Focus Areas:

Response Speed:

High-Quality Manufacturers

24-hour response

Spare Parts Inventory:

Common spare parts are readily available.

Technical Team:

Does it have:

- Mechanical Engineer

- Electrical Engineer

- Hydraulic Engineer

Training Capability:

Provide:

- Installation and Commissioning

- Operation Training

- Maintenance Training

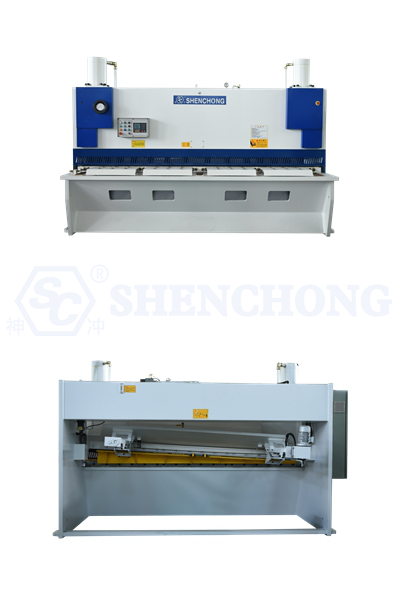

14. Typical Characteristics of High-Quality Shearing Machines

A truly high-quality hydraulic shearing machine typically possesses:

- All-steel welded frame structure

- Overall annealing to relieve stress

- One-time machining by a high-precision gantry machining center

- International brand hydraulic system

- High-precision ball screws and linear guides

- AC servo back gauge system

- Automatic blade gap adjustment

- High-hardness wear-resistant blades

- Long-term stable shearing accuracy

- Low failure rate and long service life

- Comprehensive after-sales service system

15. Summary: Ten Principles for Purchasing Shearing Machines

When judging the quality of a shearing machine, remember the following ten points:

- Check the weight and rigidity of the frame

- Check the welding process and annealing treatment

- Check the blade holder structure design

- Check the blade material and heat treatment

- Check the brand and configuration of the hydraulic system

- Check the quality of electrical components

- Check the CNC system and back gauge accuracy

- Check the actual shearing results

- Check the manufacturer's manufacturing strength

- Check the after-sales service capabilities

A truly reliable shearing machine should possess the following characteristics:

- Machine body High rigidity and robust structure

- High-quality blade material, wear-resistant cutting edge

- Adjustable and highly precise blade gap

- Smooth shearing surface with minimal burrs

- Accurate back gauge positioning with high repeatability

- Stable hydraulic system, leak-free and heat-free

- Reliable electrical control and smooth operation

- Controllable noise and vibration

- Comprehensive safety protection

- Strong continuous operation capability

- Easy maintenance and long service life

For industrial users, judging the shearing machine quality should not only focus on price, but also on the equipment's comprehensive performance, long-term stability, and total life cycle cost. While a high-quality shearing machine has a higher initial investment, it typically maintains high precision, high efficiency, and low failure rate over a 10-20 year lifespan, making its overall value far superior to lower-priced equipment.

Especially in the steel structure, construction machinery, elevator manufacturing, automotive parts, and high-end sheet metal processing sectors, the production efficiency, product quality improvement, and reduced operating costs brought by high-quality shearing machines will become a crucial guarantee for a company's long-term competitiveness.
