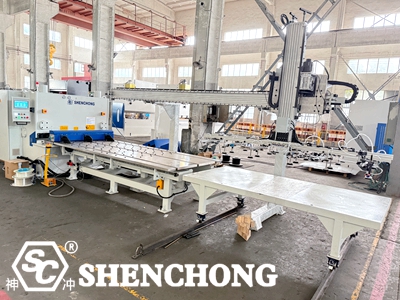

The integration of front feeding systems into CNC shearing machines represents a significant trend in the automation of sheet metal processing in recent years. Compared to traditional manual feeding methods, front feeding systems, through CNC positioning, automatic conveying, precise clamping, and intelligent control, significantly improve shearing efficiency, processing accuracy, and production safety. They are widely used in industries such as steel structures, sheet metal manufacturing, elevators, cabinets, electrical equipment, automotive parts, and construction machinery.
As the sheet metal processing industry moves towards automation, intelligence, high precision, and flexible manufacturing, traditional manual shearing methods are increasingly unable to meet modern production demands. CNC shearing machine with front feeder, through servo drives, CNC control, automatic clamping, and precise positioning, achieve automatic feeding, automatic shearing, and continuous processing of sheet metal, significantly improving production efficiency, processing accuracy, and production safety. They are particularly suitable for high-volume, high-consistency production.

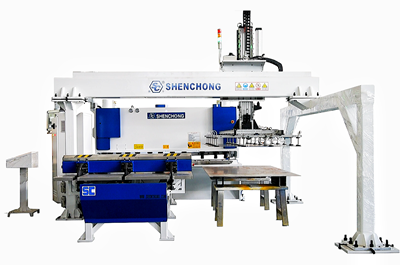

A CNC front-feed shearing machine adds a CNC servo feeding platform to the front of a hydraulic guillotine shearing machine.
It completes the following tasks through program control:
- Automatic positioning
- Automatic clamping
- Automatic feeding
- Automatic shearing
- Automatic return
- Continuous processing
During the entire shearing process, the operator only needs to perform one loading operation. All other actions are completed automatically by the machine.

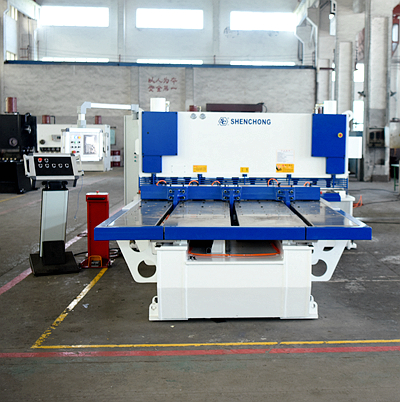

CNC shearing machine with front feeder typical components include:
- CNC hydraulic shearing machine
- Front feeding platform
- Servo drive system
- Linear guides
- Ball screws
- Pneumatic clamps
- CNC control system
- Automatic material support system
- Rear conveyor (optional)
- Automatic palletizing system (optional)
Item | Ordinary shearing machine | Front-feed shearing machine |
Positioning method | Manual positioning | CNC automatic positioning |
Feeding method | Manual pushing | Servo automatic feeding |
Number of operators | 2-3 people | Requires only 1 person |
Cutting efficiency | One blade, one positioning | Continuous automatic shearing |
Dimensional consistency | Generally, personnel close to the blade edge | Very high efficiency |
Safety | Low | Personnel distance from the blade edge |
Degree of automation | Limited | High efficiency |
Future upgrades | Manual positioning | Easy to integrate into automated production lines |
The front feeding system is an automatic feeding mechanism installed in front of the shearing machine, typically consisting of the following parts:
- CNC feeding platform
- Ball screw or rack and pinion drive
- Servo motor
- Automatic clamps
- Linear guides
- Roller support table
- CNC control system
- Photoelectric detection system
The sheet metal is placed on the feeding platform
↓
The clamps automatically clamp the sheet metal
↓
The servo system automatically feeds the sheet metal according to the set dimensions
↓
Stops after reaching the set dimensions
↓
The shearing machine completes the shearing
↓
Automatically continues the next feeding cycle
The entire process requires no manual repeated measurement and positioning.
This is one of the biggest advantages of front feeding systems.
Manual measurement→Manual positioning→Manual pushing→Manual correction→Re-measurement
Low efficiency.
Automatic program calculation→Automatic positioning→Automatic feeding→Continuous shearing
The entire batch can be processed with a single setup.
Manual shearing of 100 sheets:
Approximately 60 minutes
Automatic shearing with front feeding:
Approximately 25-35 minutes
Efficiency can typically be increased by 30%-80%
The improvement is even more significant during batch processing.
Manual feeding is prone to:
- Manual measurement error
- Pushing error
- Positioning deviation
- Repeated positioning error
Leading to:
- Inconsistent dimensions
- Increased bending errors
- Difficult welding and assembly.
The front feeding system utilizes:
- High-precision ball screws
- Servo control
- Raster feedback
- CNC positioning
Positioning accuracy typically reaches: ±0.10mm～±0.20mm
Repeatability: Approximately ±0.05mm
Ensuring consistent dimensions and height for each sheet metal piece.
Especially suitable for:
- Laser cutting components
- Precision sheet metal
- Elevator panels
- Electrical cabinets
- Medical equipment
Traditional manual processing:
The first sheet is correct. The second sheet has a slight deviation. Errors accumulate starting from the third sheet.
CNC front feeding:
The program is input once. Automatic repetitive execution ensures perfectly consistent dimensions for every sheet.
Especially suitable for:
- Hundreds of pieces
- Thousands of pieces
- Even tens of thousands of pieces in orders.
Consistency is far superior to manual processing.
Traditional shearing:
Workers need to:
Continuously move, push, pull, measure, and calibrate sheets.
Prolonged work easily leads to fatigue.
Especially for:
4m
6m
8m
Large steel plates: Manual feeding is extremely laborious.
Front-feeding system:
Automatically completes feeding.
Workers only need to:
- Place the plate
- Start the program
- Receive the material.
Labor intensity reduced by approximately: 50%–70%.
Traditional production:
Typically requires 2–3 people:
One person measures
One person feeds
One person receives the material.
With automatic front-feeding:
Many operations can be completed by one person.
For long-term production, it can significantly reduce:
- Labor wages
- Training costs
- Impact of staff turnover
Especially suitable for:
Areas with high labor costs.
Manual feeding is prone to:
- Incorrect dimensions
- Inverted ruler
- Positioning deviation
- Incomplete material feeding
Causing:
- Increased scrap
- Increased rework
- Material waste
CNC system: Operates according to program
Avoids:
- Human calculation errors
- Human reading errors
- Repeated measurement errors
Significantly improves processing stability
The front feeding system can precisely control the feeding distance for each step.
For example:
3000mm sheet
Requires cutting:
480
480
480
480
480
Leftover material calculation
Automatic system optimization
Avoids:
Manual estimation
Causing waste of leftover material
Material utilization rate can typically be increased by:
3%～10%
For:
Stainless steel
Aluminum plate
Copper plate
High-strength steel
The value is more obvious.
For:
Continuous same size
Continuous different size
Batch order processing
The advantages of front feeding are significant.
For example:
Input program:
600 450 300 520 480
Automatic system:
Feeding
Shearing
Feeding
Shearing
No manual adjustment required.
Truly achieves continuous automatic processing.
Modern CNC front feeding:
Supports:
- USB
- Network
- MES
- ERP
- Barcode management
Can achieve:
- Automatic order reading
- Automatic size recall
- Processing record saving
- Production traceability
Truly achieves digital production.
Traditional manual:
Workers frequently approach the cutting edge.
Potential risks:
- Hand pinching
- Scratches
- Misoperation
Front feeding:
The feeding mechanism replaces manual entry into the danger zone.
Operators stay away from the cutting edge.
Significantly improved safety.
Many devices can also be equipped with:
- Light curtain protection
- Emergency stop system
- Safety interlock
- Protective fence
Further improve safety level.
For example:
4-meter sheets
6-meter sheets
8-meter sheets
10-meter sheets
Manual pushing is very difficult.
Front feeding:
- Roller platform
- Air flotation platform
- Ball bearing platform
- Automatic material support
Sheet movement is easy.
Reduces:
- Scratches
- Bumps
- Deformation
Stable feeding means:
Sheets are always:
- Flat
- Closely attached
- Consistently positioned.
Avoids:
- Wrong material
- Offset material
- Oblique cut
- Increased shearing burrs
Ultimately:
More consistent sheared cross-section.
Processable:
- Carbon steel
- Stainless steel
- Galvanized sheet
- Aluminum sheet
- Copper sheet
- Silicon steel sheet
- High-strength steel
- Wear-resistant steel
Stable feeding can be achieved for different materials through parameter adjustment.
Manual feeding: Equipment often waits.
Shearing time: May only account for 30%.
Waiting for material feeding: 70%.
Front feeding: Fast feeding speed.
The shearing machine operates almost continuously.
Equipment utilization rate can be increased by 20%–50%.
The front feeding system is a crucial foundation for intelligent shearing and can be further integrated with automated equipment:
- Gantry robot
- Vacuum suction cup loading
- Automatic palletizing system
- AGV logistics vehicle
- Intelligent warehousing system
Forming a complete process:
Intelligent warehousing → Automatic loading → Front feeding positioning → CNC shearing → Automatic unloading → Automatic palletizing → Finished product warehousing
Truly achieving unmanned and continuous production.
Front-feed CNC shearing machines are widely used in:
Sheet metal processing
Elevator manufacturing
Power distribution cabinet manufacturing
Electrical control cabinets
New energy equipment
Construction machinery
Automotive parts
Home appliance manufacturing
Power equipment
Shipbuilding
Steel structure processing
Kitchen equipment
Medical equipment
Stainless steel products
Any industry requiring large-volume fixed-length cutting and repeated shearing can benefit significantly from a front-feed system.
We recommend prioritizing the following scenarios:
- Large daily shearing volume and stable orders
- High product specification repetition rate, requiring continuous feeding to fixed lengths
- Frequently processing boards longer than 4 meters or heavier than standard lengths
- High requirements for dimensional consistency
- Desire to reduce manual labor and labor intensity
- Plans for building automated production lines or smart factories
Compared to ordinary CNC shearing machines, front-feeding equipment, although requiring a higher initial investment, typically offers significant returns in the medium to long term:
- Saving labor costs: Reducing the number of operators from multiple people to a single person.
- Increasing production capacity: Shortening positioning and feeding time, improving equipment utilization.
- Reducing scrap rate: Dimensional stability, reducing rework and material waste.
- Improving equipment collaboration efficiency: Can be integrated with bending, laser cutting, and automated storage equipment to achieve continuous production.
For companies engaged in continuous mass production, the overall return on investment is usually superior to traditional manual feeding solutions.
CNC shearing machine with front feeder not only achieve automatic feeding, precise positioning, and continuous shearing, but also effectively solve the problems of low efficiency, unstable accuracy, high labor intensity, and high safety risks associated with traditional manual feeding. For enterprises requiring large-volume, high-precision processing, it can significantly improve production efficiency, reduce labor costs, increase material utilization, and lay the foundation for intelligent manufacturing upgrades.
With the continuous development of servo control, CNC technology, and intelligent logistics systems, CNC shearing machines with front feeding systems are gradually becoming an important component of modern sheet metal processing production lines, providing strong support for enterprises to achieve high-quality, high-efficiency, and low-cost production.
