SHENCHONG WEK 40 Tons 1320mm Hydraulic CNC Press Brake Machine For Sale
Time:2023-04-04
Visits:278

WEK 40 Tons 1320mm Hydraulic CNC Press Brake For Sale


SHENCHONG WEK 40 Ton 1320mm cnc press brake machine for sale with DELEM DA53T Controller, 4+1 axis.

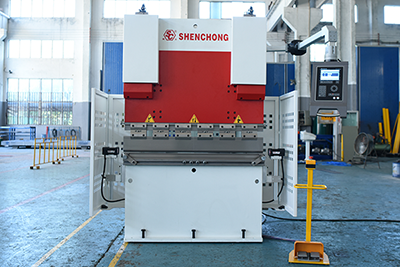

40 Tons 1320mm cnc hydraulic press brake for sale


SHENCHONG 40T/1320MM CNC Press Brake Main Features

To meet customers' bending requests, SHENCHONG announce WEK Serie Electro-Hydraulic CNC hydraulic Press Brake Machine, which has become the most popular CNC Press Brake type in the global market. WEK Serie press brake is equipped with a touch-screen graphic programing CNC controller and is available in 4 axes in total with 2 axes back gauge. WEK Serie is intended and designed for customers looking for the basics and ease of use.

- The fuselage adopts integral welding and integral processing structure.

- Adopting the closed-loop control method composed of German electro-hydraulic servo valve and grating ruler, the slider position feedback accuracy is high, the operation is accurate and stable, the synchronization performance is good, and the bending accuracy is high.

- The CNC control system can realize the functions of bending angle graphic programming, angle correction compensation,automatic calculation and automatic adjustment of bending pressure, automatic calculation of the deformation compensation amount of the working table, the unfolded length of the work piece, and the automatic back gauge of the back gauge.

- DELEM DA53T controller controls the backgauge, which can continuous bend the complex workpiece

40T1320mm hydraulic press brake for sale


WEK 40T1320MM Press Brake Machine Technical Parameters:

- Nominal Pressure: 40 Tons

- Length of Table: 1320mm

- Distance Between housings: 1000mm

- Throat Depth: 250mm

- Stroke: 160mm

- Open Height: 400mm

- Main Motor: 4kw

- Approach speed: 180mm/s

- Axis(4+V): Y1, Y2, X, R +V

- Y1,Y2 parallel tolerance: ±0.01mm

- X precision: ±0.015mm

- X movable distance: 5-1000mm

- R precision: ±0.03mm

- R movable distance: 200

- Overall Dimensions: 1830x1430x2215mm

- Weight: 3.1 Tons



CNC axis description:

Y1, Y2 axis—controls the CNC axes of the cylinders on both sides. The X-axis controls the back gauge and forth of the back gauge, the R-axis controls the back gauge up and down, the Z1,Z2 axis control the back gauge finger left and right, and the V-axis table is CNC crowning.


Why not also check with our WDK Electric Servo Press Brake Machine Series

WEK 40T x 1320MM CNC Hydraulic Press Brake Machine Details

- Movable front arm support

- Double linear guide of the backgauge

- 2 pieces standard rear stop fingers

- Linear magnectic scale from German

- Standard 4 axes controlled by CNC


40 tons 1320mm CNC hydraulic press brake machine details

40 Tons 1320mm CNC Press Brake Configuration

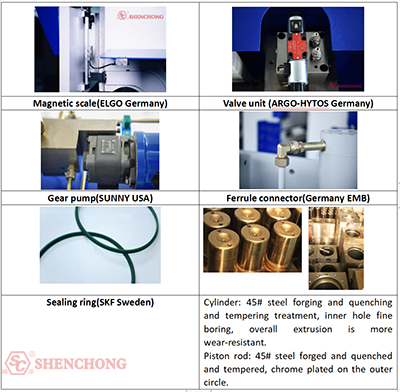

WEK CNC Press Brake Hydraulic Parts:

- Magnetic scale (ELGO Germany)

- Valve unit (ARGO-HYTOS Germany)

- Gear pump (SUNNY USA)

- Ferrule connector (EMB Germany)

- Sealing ring (SKF Sweden)


40 tons 1320mm cnc press brake hydraulic parts


WEK 40T1320MM Electrical Parts:

- DELEM DA53T CNC controller (touch screen from DELEM Netherlands)

- Main motor (SIEMENS)

- V axis table crowning (CNC controlled)

- Backgauge servo motor (DELTA Taiwan)

- Electrical components (Schneider France)

- Movable foot pedal for esay operation and emergency power off function


40 tons 1320mm cnc press brake electrical parts

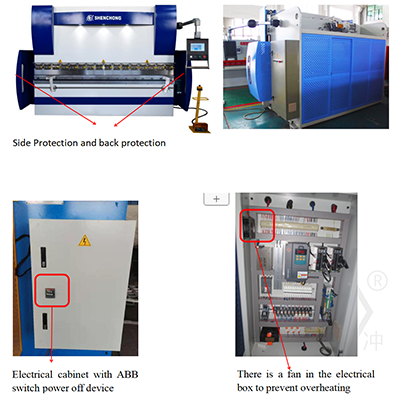

Safety Protection of 40 Tons CNC Press Brake

- Shenchong CNC press brake standard safety protection includes:

- Side protection and back door protection

- Electrical cabinet with ABB switch power off device

- Fan in the electrical box prevent overheating

- Cooling device to prevent overheating of oil tank


40 Tons cnc press brake safety protection

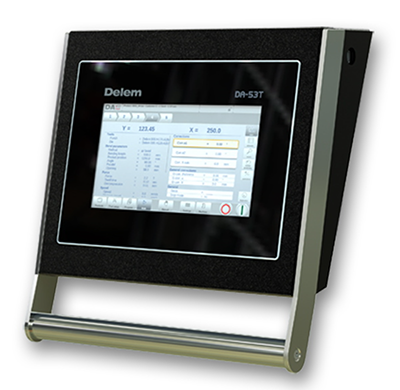

DELEM DA53T Controller

DA53T for CNC press brake


- "Hot-key” touch navigation

- 10.1" high resolution colour TFT

- Up to 4 axes (Y1,Y2 + 2 aux. axes)

- Crowning control

- Tool / material / product library

- Servo and frequency inverter control

- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

- TandemLink (option)

- USB memory stick interfacing

- Profile-T offline software


We also provide other CNC controller option: CYBELEC, ESA, ELGO... Welcome to contact with our sales for more machine details.


SHENCHONG After-Sale Service

As a professional CNC press brake machine manufacturer, Shenchong always focus on customers' satisfaction.

  • We will arrange for engineers and installers to go to the site for installation, commissioning and training, which is about 3 days. Or you can arrange for people to come and study.

  • The warranty period of the machine is 13 months, including one month in shipping.

  • If there is any problem, we will first check the machine problem through video and guide the repair. If it still cannot be solved, an employee will be sent to the site for repair.

  • During the warranty period, non-human damage, parts damage shall be responsible by the seller.
