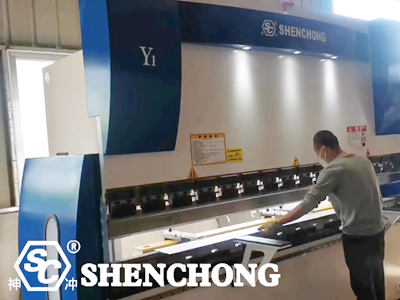

SC WDK CNC Servo Press Brake 125T 3200MM is a medium-sized CNC hybrid press brake that combines high energy efficiency, precise control, and intelligent operation, providing high-performance bending solutions specifically for the sheet metal processing industry.

It utilizes a hybrid drive system, high-precision 4+1-axis control, and an advanced CNC system, balancing energy conservation and environmental protection with production efficiency, making it an ideal choice for processing medium-thin sheet metal.

1. Basic Information

Brand and Model: SC WDK Hybrid CNC Press Brake

Nominal Force: 125 tons

Bending Length: 3200mm

Control System: ESA S630

Axis Configuration: 4 + 1 (Y1, Y2, X, R + V-axis compensation)

Drive Type: Hybrid Servo Drive

2. Core Specifications

Nominal Force: 1250 kN (125 tons)

Bending Length: 3200mm

Column Spacing: 2600 mm (varies slightly depending on the structure)

Throat Depth: Approximately 400 mm

Slide Stroke: 200 mm to 250 mm

Maximum Opening Height: 450 mm to 500 mm (between upper and lower dies)

Main Drive: Hybrid Servo Pump Control System

Back Gauge Stroke: X-axis ≥ 500mm, R-axis height adjustable

Axis controls: Y1, Y2, X, R, and V axes (hydraulic deflection compensation)

Repeatability: ±0.01mm (may vary slightly depending on mold and process)

3. ESA S630 Control System Advantages

- 10.1" color touchscreen with user-friendly interface

- Supports 2D programming and graphical display of the bending process

- Multiple language support (including Chinese) for easy use by operators worldwide

- Can store multiple molds and programs

- USB and network connectivity for quick import and export of process parameters

- Supports angle and deflection compensation control

4. Hybrid Drive Advantages

- Energy Savings: Over 30% energy savings compared to traditional hydraulic systems, with virtually zero energy consumption during standby mode

- Low Noise: The oil pump only activates during operation, resulting in significantly quieter operation

- Fast Response: The servo motor responds quickly, improving processing efficiency

- High Stability: Improved control accuracy and repeatability

5. Typical Sample Bending Capacity Analysis

The following is a reference for typical bending capacities for different materials and thicknesses (the V-groove opening is based on 8 times the plate thickness):

6. Applicable Industries

- Ventilation duct manufacturing

- Electrical cabinets/chassis cabinets

- Stainless steel kitchenware and decorative parts

- Sheet metal processing and metal furniture

- Home appliance housings and sheet metal parts for construction machinery, etc.
