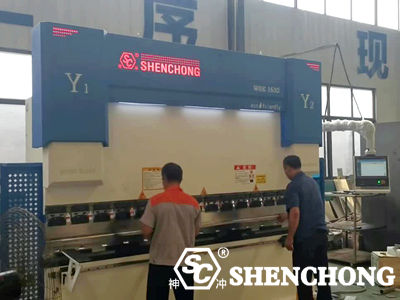

SHENCHONG WSK CNC Press Brake 160T 3200mm EL15T control system, offers a mid-to-large-sized press brake system that strikes an excellent balance between reliability, precision, ease of use, and cost. Its 3+1 axis layout (Y1/Y2 + backgauge, X+V compensation) is suitable for demanding precision machining. The EL15T control system's graphical and intelligent configuration enhances production efficiency and offers ample room for expansion and upgrades.

1. Equipment Basic Parameters (for reference only)

Nominal Pressure: 160 tons

Bending Length: 3200 mm

Controlled Axes: 3+1 (Y1, Y2, X+V)

Opening Height: Typically approximately 400 mm

Slide Stroke: Approximately 200 mm

Throat Depth: Approximately 320 mm

Motor Power: 11–15 kW (depending on configuration)

Weight: Approximately 8–10 tons

Dimensions: Approximately 3700 × 1800 × 2600 mm

2. Machine Structure and Configuration

One-piece welded steel bed: High-temperature tempered for excellent rigidity and minimal deformation.

Hydraulic System: Utilizes a German-branded proportional servo valve for smooth operation and high precision.

Scale Feedback: Equipped with a German-imported magnetic scale, the closed-loop control accuracy is ±0.01 mm.

Back Gauge: Driven by a servo motor and ball screw for high repeatability. Worktable Compensation: Mechanical or hydraulic V-axis compensation automatically adjusts for deformation.

3. Control System Configuration

The EL CNC system is independently developed by Shenchong. The EL15T is the most cost-effective model in the SC EL CNC series, widely used for medium and large-tonnage press brakes.

Core Functions and Features:

Touchscreen User Interface: Equipped with an industrial-grade LCD touchscreen with a multi-language interface (including Chinese, English, and multiple languages).

Graphical Programming: Draw 2D bending diagrams directly on the touchscreen to automatically generate bending sequences and programs.

Process Database Management: Stores parameters such as material type, mold, bend angle, springback compensation, and interference detection.

Intelligent Process Control: Automatically calculates unfolded length, required pressure, and opening height, providing pressure proportional control and shoulder compensation.

Fault Diagnosis and Remote Service: Built-in diagnostic module supports remote maintenance and program updates.

4. WSK CNC Press Brake 160T 3200MM Advantages

High-precision bending: Closed-loop control ensures consistent angle and position

Simple operation: Graphical programming reduces technical barriers

Adaptability: Suitable for bending a variety of sheet metals (carbon steel, stainless steel, aluminum, etc.)

Energy-saving and efficient: Optional servo pump control system provides significant energy savings

Safety and reliability: Standard features include photoelectric protection, emergency stop button, and safety barrier

For a detailed quote about WSK CNC Press Brake 160T 3200MM, configuration options (such as Z-axis, robot interface, number of backgauges), or comparisons with other control systems (such as the EL17T or DELEM), please contact us and we can provide more in-depth information.
