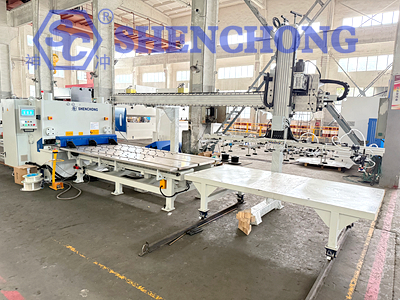

SHENCHONG single beam truss front feeding shearing machine 8×1500mm is a CNC hydraulic guillotine shearing automation system that integrates intelligent feeding, precise cutting, and efficient operation. It is suitable for automatic shearing of metal plates with a thickness of ≤8mm and a width of ≤1500mm. The single beam truss structure and high-performance servo system achieve fast and stable front feeding movement, significantly improving production efficiency and reducing labor costs.

1. Single Beam Truss Front Feeding Shearing Machine 8X1500MM Main Parameters (for reference only)

- Shearing capacity: ≤8mm carbon steel plate (Q235), stainless steel can be appropriately thinned depending on the material

- Shearing width: 1500mm

- Front feeding stroke: 2500mm (X-axis stroke)

- Shearing length accuracy: ±0.2mm (specific accuracy is related to the rigidity and adjustment of the plate)

- Positioning method: servo motor drive + ball screw + linear guide (high precision)

- Control system: PLC + touch screen, support automatic programming and batch task import

- Truss structure: single beam truss, lightweight design, strong rigidity, stable movement

- Feeding speed: up to 25m/min (no load)

- Operation mode: automatic feeding + shearing. One-button start. Workers only need to cooperate in handling raw materials, finished products and waste materials

2. Functional features of single beam truss front feeding shearing machines

- The single beam truss front feeding shearing machine combines the flexibility of the truss manipulator and the efficient shearing ability of the shearing machine, and is widely used in sheet metal automation production lines.

- Intelligent feeding system: adopts high-precision servo control, accurate positioning, and supports batch size setting.

- Stable shearing performance: With hydraulic or servo shearing machine, fast shearing and high repeatability can be achieved.

- Labor saving: greatly reduce manual knife setting and feeding operations, and improve production safety.

- Multi-batch program control: one-time programming, multiple sets of specifications are automatically completed without manual intervention.

- High space utilization: compact structure, small footprint, suitable for integration of various sheet metal processing production lines.

3. Advantages and features of single-beam truss front-feed shearing machine

1) Structural advantages

Single-beam truss structure:

- Lightweight design, simple structure, good rigidity, smoother movement.

- Compared with double-beam truss, maintenance is simpler and system cost is lower.

Integrated design:

- The feeding device and shearing machine are efficiently integrated, occupying a small area, suitable for use in small and medium-sized factories.

- The system layout is compact, which is convenient for later production line expansion or relocation.

2) Performance advantages

High-precision feeding positioning:

- Adopting servo motor + ball screw + linear guide, the positioning accuracy can reach ±0.2mm.

- Support multi-stage feeding and batch shearing tasks to meet complex processing requirements.

High degree of automation:

- Automatic material collection, automatic positioning, automatic shearing, no manual intervention required for the whole process.

- One-button start, automatic switching of multiple board sizes, and support for program import.

High efficiency and fast beat:

- The front feeding method saves the waiting time for the back stop and shortens the working cycle.

- Quick response, seamless coordination of feeding and cutting, greatly improving unit output.

3) Application advantages

Strong applicability:

- Applicable to a variety of materials such as carbon steel, stainless steel, aluminum plate, etc.

- Commonly used in home appliances, sheet metal, kitchenware, elevators, photovoltaic brackets and other industries.

Strong scalability:

- Can be combined with laser cutting, punching machines, loading and unloading trusses to form a flexible automatic production line.

- The control system is open and easy to connect with MES and ERP systems.

4) Economic and management advantages

Save labor and costs:

- One person can take care of multiple machines, reducing labor costs and operating errors.

- Improve safety and reduce the risk of work-related injuries and miscutting.

Improve material utilization:

- Precisely control the cutting size to reduce waste and rework rate.

- Long-term stable operation and reduce downtime and maintenance time.
