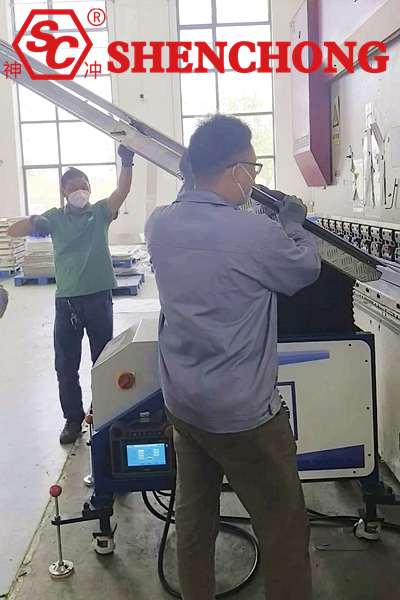

SC DLSD25 Bending Follower Support Device is an intelligent auxiliary device specifically designed for use with CNC press brake bending machines. It is primarily used for automatic support, synchronous following, and dynamic lifting of workpieces during sheet metal bending.

Its core function is to replace manual material handling when bending large, long, thin, or heavy sheet metal, achieving synchronized movement between the workpiece and the bending machine's slide block. This improves bending accuracy, reduces labor intensity, and increases production efficiency.

The DLSD25 typically employs a servo drive system, high-precision sensors, and an independent control system. It automatically adjusts the position and angle of the support platform according to the bending angle, achieving intelligent follower support.

1. Working Principle of the DLSD25 Bending Follower Support Device

In traditional bending processes:

- Large sheet metal is prone to sagging due to its own weight.

- The workpiece will generate a large cantilever moment.

- Even with multiple people working together to support the material, stability is difficult to guarantee.

- Bending angle errors and workpiece scratches are very likely to occur.

During bending follower operation:

- The CNC press brake machine begins to press down.

- The displacement sensor collects the slider position in real time.

- The control system calculates the movement trajectory of the sheet metal.

- The servo motor drives the material support platform to lift synchronously.

- The material support platform maintains the same angle of movement as the workpiece.

- It automatically resets until the bending is complete.

Throughout the entire process, the material support device always supports the weight of the workpiece, ensuring even stress on the sheet metal and preventing sagging deformation.

2. Main Components of DLSD25 Bending Follower System

1) Servo Drive System

Utilizes a high-performance servo motor drive:

- Fast response speed

- Smooth operation

- High positioning accuracy

- Synchronous following

Compared to hydraulic or pneumatic methods, servo control is more precise.

2) Material Support Platform

Equipped with a ball bearing table or brush support table:

- Reduces sheet metal friction

- Prevents surface scratches

- Facilitates workpiece movement

Suitable for materials with high surface finish requirements such as stainless steel and aluminum plates.

3) High-Precision Detection System

Includes:

- Displacement sensor

- Photoelectric sensor

- Laser detection system

Real-time monitoring of workpiece position and bending status.

4) Independent Control System

Features:

- PLC control

- Touchscreen operation

- Parameter setting

- Automatic/manual mode switching

Usable without modifying the existing bending machine system.

5) Movable Base

- Equipped with heavy-duty casters:

- Facilitates rapid movement

- Adapts to multiple bending machines

- Improves equipment utilization

3. Core Features of Bending Follow-up Operation

1) Intelligent Synchronous Follow-up

The equipment can automatically adjust the material support angle according to the bending angle.

Achieving:

- Speed synchronization

- Trajectory synchronization

- Angle synchronization

Ensuring the workpiece is always in the optimal support state.

2) High-Precision Servo Control

The DLSD25 bending follower adopts closed-loop servo control technology:

- Rapid response

- High repeatability

- Extremely small following error

Especially suitable for high-precision sheet metal processing.

3) Independent Operation

No modification required:

The bending machine's hydraulic system, CNC system, and electrical system can all be used together.

Applicable to:

DA53T, DA58T, DA66T, DA69T, ESA, CybTouch, EL15T, and other CNC systems.

4) Adaptable to Extra-Large Plate Processing

Especially suitable for:

- Long plates

- Large workpieces

- Extra-wide plates

- Thin plate workpieces

Effectively avoids plate deformation due to gravity.

5) Modular Design

Equipment Support:

- Single unit use

- Dual-machine linkage

- Multi-station expansion

Meets diverse production needs.

4. Sheet Follower Bending Advantages Analysis

1) Improved Bending Accuracy

Traditional manual material handling:

- Uneven stress on sheet metal

- Easy to cause sagging

DLSD25 bending follwer can achieve:

- Uniform support

- Dynamic compensation

- Preventing deformation

Significantly improving bending angle consistency.

2) Reduced Labor Costs

Taking workpieces over 4 meters as an example:

Traditional method: Requires 2-3 people to assist

With DLSD25: 1 person can complete the operation

Greatly reducing labor input.

3) Improved Production Efficiency

Automatic following support can:

- Reduce clamping time

- Reduce workpiece adjustment time

- Increase continuous processing capability

Overall production efficiency increased by 20%-50% or more.

4) Prevents Workpiece Scratches

Utilizes:

- Brush platform

- Ball ball platform

- Reduces friction.

Especially suitable for:

- Mirror stainless steel

- Brushed stainless steel

- Aluminum plate

- Covered plate

5) Improved Safety

Avoids:

- Injuries from manual material handling

- Workpiece falling

- Risks associated with overloading

- Improved workshop safety

6) Reduced Bending Issues

Large thin plates are prone to:

- Sinking

- Springing

- Bending

DLSD25 continuously supports the workpiece, effectively preventing these problems.

5. Applicable Industries

DLSD25 bending follwer device is widely used in:

- Elevator Manufacturing

- Car Panels

- Door Panels

- Decorative Panels

- Chassis & Cabinets

- Electrical Control Cabinets

- Power Distribution Cabinets

- Network Cabinets

- Stainless Steel Products

- Kitchen Equipment

- Hotel Supplies

- Decoration Engineering

- Building Curtain Walls

- Aluminum Single Panels

- Aluminum Honeycomb Panels

- Curtain Wall Components

- New Energy Industry

- Energy Storage Cabinets

- Photovoltaic Brackets

- Battery Boxes

- Construction Machinery

- Large Structural Components

- Sheet Metal Exteriors

6. Comparison of DLSD25 Bending and Traditional Manual Material Feeding

Comparison Table:

7. Summary

The DLSD25 bending follow-up material support device is an important auxiliary equipment for modern CNC press brake machines to achieve automated, high-precision, and high-efficiency production. Through servo synchronous following, intelligent trajectory control, and dynamic lifting technology, it effectively solves the problems of sagging deformation, angle error, high labor costs, and significant safety risks during the bending of large sheet metal.

For companies processing: long plates over 3 meters, stainless steel decorative panels, elevator panels, curtain wall aluminum panels, chassis and cabinet panels, and heavy-duty sheet metal structural components, SC DLSD25 bending follwer support device not only significantly improves bending quality and production efficiency but also reduces labor costs, enabling the bending process to upgrade to intelligent manufacturing. It is an essential component of high-end CNC bending production lines.
