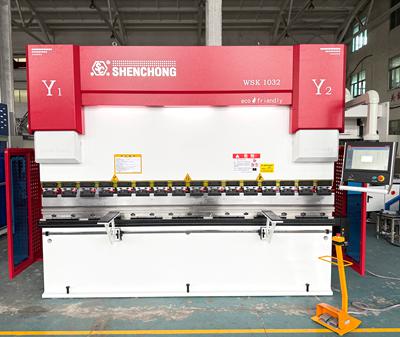

SHENCHONG WSK Single Servo CNC Press Brake Machine 100Ton 3200mm is a high-precision CNC sheet metal forming machine with a rated pressure of 100 tons and a bending length of 3200mm. It is widely used in sheet metal processing, electrical cabinets, electrical enclosures, elevator manufacturing, steel structures, mechanical equipment housings, environmental protection equipment, kitchenware, door manufacturing, and the new energy industry.

This machine combines a single servo-driven hydraulic system with CNC technology, taking into account the large tonnage advantages of traditional hydraulic bending machines and the energy-saving and efficient characteristics of servo systems. It is one of the most commonly chosen main models for small and medium-sized sheet metal enterprises. The WSK series typically features a 4+1 axis control system and an EL15T controller, enabling high-precision bending processing of complex workpieces.

1. Main technical parameters of single servo CNC press brake machine 100Ton 3200mm

The specific parameters will be adjusted according to the customer's configuration.

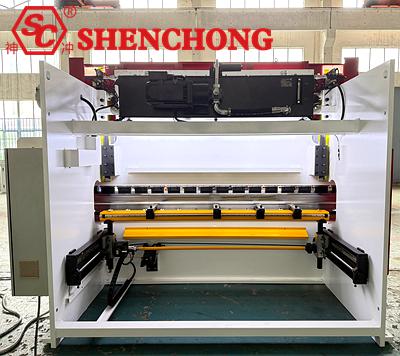

2. SC WSK Single Servo CNC Bending Machine Equipment Structure Composition

1) WSK Single Servo CNC Press Brake Machine Frame System

Adopts integral steel plate welded structure:

- Q235 high-quality steel plate welding

- Vibration aging treatment

- Large floor-type milling machine for one-time processing

Features:

- High rigidity

- Strong resistance to deformation

- Stable accuracy over long-term use

The overall frame design can withstand 100 tons of pressure without significant deformation, ensuring long-term processing accuracy.

2) Hydraulic System

Adopts single servo energy-saving hydraulic system:

Composition:

- Servo motor

- Variable displacement pump

- Hydraulic cylinder

- Hydraulic valve group

- Oil tank system

Working Principle:

When the equipment is in standby mode:

- The motor hardly works

- No ineffective energy consumption

During bending:

- The servo motor adjusts its speed in real time according to the load

- Automatically outputs the required flow and pressure

Compared to traditional asynchronous motors:

Energy saving can reach: 30%-50% or more.

3. EL15T CNC System Features

The EL15T is currently the most widely used economical graphical control system in China.

Main Functions:

1) Graphical Programming

Direct Input: Plate Thickness, Material, Bending Angle, V-groove Parameters

System Automatic Calculation: Pressing Depth, Backgauge Position, Bending Sequence

2) Automatic Angle Calculation

Reduces manual trial bending: Improves first-piece yield.

3) Multi-Step Programming

Continuously Stores: Over 1000 product programs

Suitable for mass production.

4) Multilingual Interface

Simple Operation: Short training period for new employees.

5) USB Import/Export

Convenient: Program backup, data management, process sharing.

4. Analysis of machining capacity of a single-servo CNC bending machine 100 Ton 3200mm

Carbon steel machining capacity:

Stainless steel processing capabilities:

Aluminum sheet processing capabilities:

5. Typical Application Industries

1) Electrical Cabinet Industry

Products: Distribution cabinets, Control cabinets

2) Network Cabinets

Features: Mass production, High precision requirements

3) Elevator Industry

Processing: Door panels, Covering panels, Decorative parts

Requirements: High surface quality, Consistent angles

4) Steel Structure Industry

Processing: C-shaped steel, U-shaped steel, Stiffening plates

5) New Energy Industry

Applications: Energy storage cabinets, Photovoltaic brackets, Battery housings

6) Machinery Manufacturing Industry

Processing: Equipment covers, Frame components, Sheet metal structural parts

6. Comparison with Ordinary Hydraulic Bending Machines

Comparison Table:

SHENCHONG WSK 100Ton 3200mm single servo CNC press brake machine is one of the most cost-effective mainstream models in the current sheet metal industry. Its 100-ton pressure and 3200mm bending length can cover most sheet metal processing needs, while its single-servo energy-saving system, 4+1 axis control, EL15T CNC system, and electro-hydraulic synchronization technology ensure high precision, high efficiency, low energy consumption, and low maintenance costs.

For industries such as power distribution cabinets, elevators, steel structures, new energy equipment, and machinery manufacturing, SC WSK 100Ton 3200 not only meets current production needs but can also be upgraded with automatic follow-up material handling, robotic bending units, and flexible production lines, making it a crucial foundational equipment for enterprises to achieve intelligent sheet metal manufacturing.
