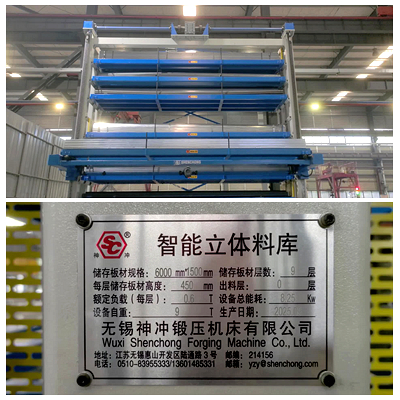

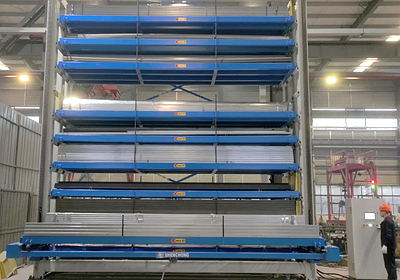

SHENCHONG 6015 aluminum profile automatic storage system, with 9 layers and a capacity of 0.6 tons, is a high-density automated racking system designed for long, rectangular aluminum profiles with regular cross-sections (such as industrial profiles, door and window profiles, and profile bars).

With a 9-layer structure and a unit load capacity of 0.6 tons per layer, it is suitable for processing plants and logistics warehouses requiring small to medium batches, multiple specifications, and rapid inbound and outbound operations.

1. 6015 Aluminum Profile Automatic Storage System Key Technical Parameters (Example)

- Model: 6015 (for internal numbering/drawing identification)

- Number of Layers: 9

- Rated Load Capacity (Assumed): 0.6 t (600 kg) per layer / single-row loading position

- Column Material: Q235/Q345 cold-formed steel profiles or hot-rolled channel steel, with cross-section selected according to load

- Beams/Support Beams: Welded structure of channel steel or profile steel, surface treatment: powder coating/baking paint/hot-dip galvanizing

- Surface Treatment: Rust removal (sandblasting) + primer + topcoat (or hot-dip galvanizing, for humid environments)

- Communication: Supports ERP/MES/production line data interaction

- Control System: PLC (Siemens/Mitsubishi, etc.) + HMI + WMS/WCS interface (API/OPC UA)

- Identification Method: Barcode/QR code/RFID optional

- Safety Configuration: Light curtain protection, emergency stop, limit switch, fall arrestor, overload protection

- Environmental Adaptability: Normal temperature workshop (optional anti-corrosion/moisture-proof treatment)

2. System Components

- 6015 aluminum profile automatic storage system racking system: Adopts a modular design with a 9-layer structure, making full use of factory height.

- Each rack unit has a load capacity of 0.6 tons, meeting the stacking requirements for medium-sized aluminum profiles.

- Stacker Crane System: Provides two degrees of freedom of movement: vertical lifting and horizontal walking.

- Equipped with photoelectric positioning, laser ranging, and anti-collision systems.

- Conveying System: Responsible for automatic docking, transfer, and buffering of material frames.

- Supports multi-station docking (e.g., production line, inspection area, packaging area).

- Intelligent Control System (WCS+WMS): Automatically schedules inbound and outbound tasks and monitors the status of storage locations in real time.

- Seamlessly integrates with enterprise ERP/MES systems for data linkage.

3. System Advantages Of SC Automatic Storage System

- High-Density Storage: 9-layer three-dimensional design, increasing storage capacity by 3-5 times compared to traditional flat warehouses.

- High-Efficiency Inbound/Outbound: Automated stacking and conveying significantly reduces manual handling time.

- Strong Safety: The system features anti-collision, anti-fall, and anti-misalignment safety protections.

- Intelligent Management: Barcode/RFID control enables traceable management.

- Savings in Manpower and Space: Automated operations reduce the need for personnel and forklifts.

- High Scalability: Modular design allows for easy expansion of the number of layers or storage locations in the future.

4. Frequently Asked Questions (FAQ)

Q: What if the profile length varies greatly?

A: Use adjustable clamps + visual/length measurement compensation; or set up storage by length zones.

Q: How to ensure the profiles are not scratched?

A: Use padded trays, low-speed contact, and dedicated anti-scratch clamps; and perform surface inspection upon receipt.

Q: Is system expansion convenient?

A: Depends on the initial reserved interfaces and space. It is recommended to reserve space for communication, ground, and power expansion.

5. Maintenance and Care (Suggested Points)

- Daily/Pre-shift: Visually inspect clamps, limit switches, and sensors for any abnormalities; clean dust from the trays.

- Weekly Inspection: Check the lubrication of chains/gears/lead screw nuts, check for loose fasteners, and verify the functionality of gratings and safety devices.

- Quarterly/Annual Inspection: Clean the electrical cabinet, back up the PLC, review software logs, and replace easily damaged parts.

(Specific maintenance cycles depend on the project environment; a maintenance manual can be provided after on-site assessment.)

6. Aluminum Profile Automatic Storage System Typical Application Areas

- Industrial aluminum profile manufacturing and deep processing enterprises

- Building curtain wall and window profile warehousing centers

- Aluminum product manufacturers and profile distributors
