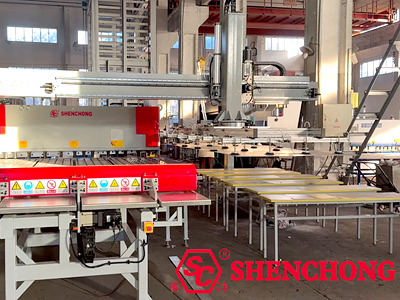

South African customer ordered 6x3200mm front-feeding shearing machine with a truss loading system. This equipment is a combination of a hydraulic guillotine shear and an automatic gantry loading system for automatic cutting and continuous production of medium and heavy steel plates.

1. Main Functions of the South Africa Front-Feeding Shearing Machine 6X3200MM

Basic Equipment Capabilities:

- Most commonly used for 6mm thick steel plates; maximum shearing width 3200mm.

- Utilizes a hydraulic shearing structure (stable shearing force, suitable for Q235/general steel shearing).

Core Functions of the Gantry Automatic Feeding System:

- Automatic gantry gantry gripping + automatic alignment of plates.

- Automatic feeding to the front of the shearing machine for positioning.

- Precise control of feeding length.

- Optional automatic unloading and connection to downstream conveyors.

Production Efficiency:

- Automatic feeding can increase capacity by 30%–50%.

- Reduces manual plate pushing and positioning errors, improving production stability.

Applicable Materials:

- Common metal materials such as steel plates, stainless steel plates, and aluminum plates.

2. Typical Parameters of Automatic Truss Loading System For Front-Feeding Shearing Machine

- Feeding Method: Vacuum suction cup / Mechanical clamp drive

- Control: PLC + CNC communication linkage

- Positioning Accuracy: ±0.2 mm – ±0.5 mm

- Loading Efficiency: 30% – 50% higher than manual loading

- Safety Devices: Light curtain / Protective fence / Emergency stop

3. Core Advantages and Features of the Automated Front-Feed Shearing Machine

1) High Level of Automation – Significantly Improved Production Efficiency

Integrating a gantry-type automatic feeding system, it achieves automatic loading, automatic alignment, automatic feeding to shearing positioning, eliminating manual plate pushing and repetitive positioning actions. Overall efficiency is improved by approximately 30%–50%, suitable for batch continuous production.

2) Higher Shearing Accuracy and Product Consistency

Servo-driven feeding control achieves feeding accuracy of ±0.2 mm ~ ±0.5 mm, eliminating human error.

Automatic alignment and positioning mechanisms ensure stable shearing dimensions for each sheet.

3) Reduced Labor Intensity and Costs

Traditional shearing machines often require 2–3 operators for feeding and positioning. The automatic gantry system achieves almost unmanned operation, thereby reducing labor intensity and saving labor costs.

4) Significantly Enhanced Safety

No manual placement of the sheet near the blade is required, reducing operational risks; the system is equipped with safety protection and sensing devices to prevent accidental contact with the cutting area.

5) High adaptability, suitable for various sheet materials

Can be used for shearing ordinary carbon steel plates, stainless steel plates, aluminum plates, and other metal materials. Suitable for medium and heavy plate processing, batch shearing, and production-oriented factory applications.

6) Good surface protection and finished product quality

The automatic gripping method using vacuum suction cups or mechanical clamps reduces surface scratches and deformation of the sheet materials during loading, which is beneficial for subsequent processing.

4. Summary of advantages compared to traditional shearing machines

Comparison table:

SHENCHONG South Africa front-feeding shearing machine 6X3200MM is an integrated cutting device designed to work with an automatic gantry feeding system. It enables a semi-automatic/fully automatic production process from sheet metal loading → positioning → front feeding → shearing → optional automatic unloading, making it particularly suitable for mass production lines of steel plates. It is more efficient, safer, more precise, and labor-saving than traditional manual feeding shearing machines, making it ideal for factories in South Africa and other regions performing large-volume metal sheet shearing.
