250T 6100MM WSK CNC Press Brake Machine For Sale
Time:2025-05-08
Visits:15

250T 6100MM WSK CNC Press Brake Machine For Sale is a high-performance, large-stroke heavy-duty sheet metal forming equipment with a bending length of up to 6100mm. It is designed for precision bending applications of long and thick plates. It is equipped with an advanced EL15T CNC system to achieve 4+1 axis fully automatic control, with high precision, high stability and humanized operation experience.

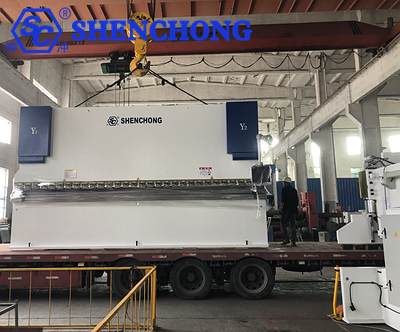

250T 6100MM WSK CNC Press Brake Machine Delivery


Main technical parameters:

Item

Parameters

Bending pressure

250 tons

Bending length

6100 mm

Column spacing

≈ 5100 mm (depending on the specific structure)

Throat depth

400 mm (customizable)

Slider stroke

250 mm (optional)

Opening height

450 mm (optional)

Number of control axes

4+1 axis (Y1, Y2, X, R + V)

Control system

EL15T CNC system

Back gauge structure

Screw + guide rail, servo drive



WSK CNC Press Brake Machine For Sale CNC system EL15T Controller features:

15-inch true color touch screen, intuitive operation, graphical programming

Support 4+1 axis independent control: Y1/Y2 synchronous servo control, X/R stopper axis servo positioning, V-axis intelligent deflection compensation

Built-in bending angle, mold, material database

Support Chinese/English and other languages, simple training and quick start

Automatically calculate bending sequence and positioning, generate process diagram

Support USB import, remote upgrade and system diagnosis



Structural and performance advantages:

High-strength integrated welding bed: annealing treatment to prevent deformation and ensure long-term use accuracy

Servo electro-hydraulic synchronization system: Y1/Y2 axis high-precision closed-loop control to ensure bending consistency

High-performance rear stopper mechanism: servo motor + ball screw + linear guide, fast and accurate movement

V-axis deflection compensation system: automatically adjust the compensation amount according to the slider stroke to ensure that the middle of the bend is not deformed

Upper mold quick clamping system (optional): quickly change molds and improve production efficiency

Multiple safety protection systems: laser safety protection, light curtain, emergency brake button




Applicable industries:

Steel structure processing

Container and carriage manufacturing

Electrical cabinets, mechanical housings

Stainless steel decoration engineering

Wind power, photovoltaic bracket bending
