SC WSK Press Brake 300Ton 4100MM EL15T 4+1 Axis For Sale
Time:2025-05-01
Visits:8

SC WSK Press Brake 300Ton 4100MM EL15T 4+1 Axis is a high performance servo electro-hydraulic synchronous CNC plate bending machine produced by SC SHENCHONG, suitable for precision bending of medium and thick plates.

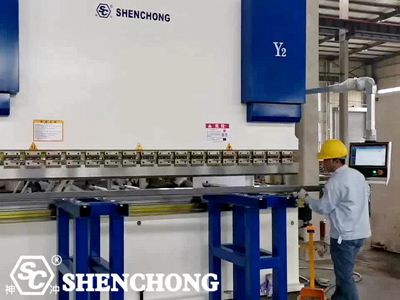

SC WSK Press Brake 300Ton 4100MM EL15T 4+1 Axis


1. Main technical parameters

  • Nominal pressure: 300 tons

  • Bending length: 4100 mm

  • Number of control axes: 4+1 axes (usually including Y1, Y2, X, R axis + V axis)

  • CNC system: EL15T (supports multi-axis control, friendly interface, supports graphic programming)

  • Back gauge system: high-precision ball screw drive, supports multi-axis linkage

  • Hydraulic system: imported hydraulic components are used to ensure stable pressure and repeatability

  • Frame structure: high-strength welded steel structure, tempered to ensure long-term use without deformation



2. CNC axis configuration (4+1 axis)

  • Y1/Y2 axis: Control the synchronous movement of the left and right cylinders to ensure the accuracy of the slider

  • X axis: Control the back gauge to move forward and backward, with high positioning accuracy

  • R axis: Control the up and down movement of the back gauge to adapt to different workpiece heights

  • V axis: Automatic compensation of the workbench to ensure the consistency of the bending angle



3. Control system: EL15T

EL15T is a CNC controller independently developed by SC Shenchong, which supports multi-axis expansion and has the following features:

  • Flexibility: More axis control modules can be added free of charge according to needs to save costs.

  • Compatibility: Supports a variety of bending programs and operation interfaces, easy to use.

  • Stability: Tightly integrated with the servo system to ensure processing accuracy.


EL15T Advantages of CNC system

  • Multi-axis scalability: Compared with European controllers such as Delem and Cybelec, EL15T can expand more control axes for free to meet complex bending needs.

  • User interface: Equipped with high-definition touch screen, supports graphical programming and simulation, and is easy to operate.

  • Intelligent functions: Supports automatic calculation of bending force, angle compensation, mold library management and other functions to improve production efficiency.



4. Structural and performance advantages of SC WSK press brake 300Ton 4100MM

  • Energy-saving and high-efficiency: driven by servo main motor, energy consumption is about 60% lower than that of traditional hydraulic bending machines

  • Low-noise operation: The noise is about 25 decibels during standby and fast operation, which improves the working environment

  • High-precision processing: Full closed-loop control system to ensure the consistency and accuracy of each bending

  • Sturdy and durable: All-steel plate welding structure, tempered and vibration aging treatment, strong stability



5. Applicable industries

WSK CNC press brale 300T 4100 EL15T 4+1 axis bending machine is widely used in the following fields:

  • Sheet metal processing: chassis, cabinets, elevators, doors and windows

  • Construction industry: steel structures, bridges, towers

  • Machinery manufacturing: environmental protection equipment, animal husbandry equipment, solar energy equipment

  • Electric power industry: utility poles, light poles, electrical equipment

  • Transportation: automobiles, ships

  • Aerospace: aircraft parts

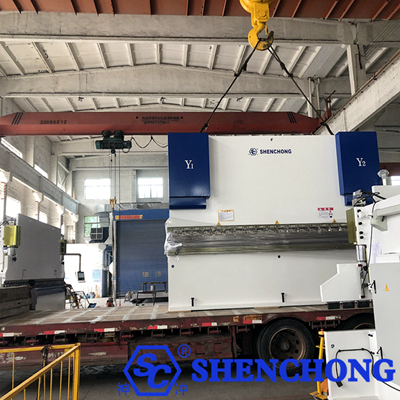

WSK Press Brake 300Ton 4100MM Delivery


SC WSK Press Brake 300ton 4100mm EL15T 4+1 axis combines a powerful hydraulic system with advanced CNC technology, suitable for industrial applications with high requirements for precision and efficiency. If you need more detailed technical information or quotation information, you can contact us for consultation!
