Tunisia Heavy Duty Tandem Press Brake 2WEK 350TON7000MM
Time:2023-10-11
Visits:284

Wuxi Shenchong is skilled in manufacturing heavy duty CNC press brake machines. SHENCHONG tandem press brakes are widely used in tubes, aerospace, shipments, automobiles, transformers, light poles, electric power poles, high mast poles, and engineering machinery...

In September, our Tunisian customer placed an order for a tandem bending machine. It has been debugged in the factory, packed and ready for delivery!


Tunisia Heavy Duty Tandem Press Brake Delivery


Tunisia Heavy Duty Tandem Press Brake Parameters:

No

Name

Unit

Parameter

1

Nominal pressure

KN

2×3500

2

Working table length

mm

2×7000

3

Center distance between uprights

mm

5400

4

Throat depth

mm

1000

5

Ram stroke

mm

250

6

Max. open height

mm

900

7

Fast speed (Appro.)

mm/s

80

8

Working speed (Appro.)

mm/s

10

9

Return speed (Aprrro.)

mm/s

60

10

Main motor

power

KW

2×22

11

CNC system

Type


ESA-S630 Italy

CNC axes

axis

Y1,Y2,Y3,Y4,V1,V2

Quantity


2

12

Overall dim.(L×W×H)

Length

mm

14400

Width

mm

3100

Height

mm

4100

13

Net Weight

KGS

2×47,000

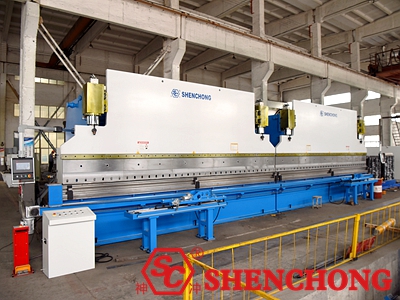

Tunisia Heavy Duty Tandem Press Brake 2WEK 350TON7000MM.jpg


Tunisia Heavy Duty Tandem Press Brake Additional configurations:

- Air cooling device

- Pushing device

- Throat depth: 950mm

- Opening height: 1000mm

- Fast speed: 160mm/s

- Return speed: 120mm/s





The tandem press brake machine are used to bend heavy duty sheet metal plate. With different press brake dies, it could make various work-pieces, which are widely used in air-plane, shipment, auto, engineering machinery, lamp pole, light pole bending, electric power pole bending, transformer and other relative lines.

Every customer can get direct hydraulic CNC tandem press brake price from us. Shenchong is one of the largest tandem press brake manufacturers, and we can offer you detailed technical proposal and price. Please provide us your plate material type, max thickness and max width. Also, it will be helpful if you can send us your workpiece drawings or related bending requirements.
