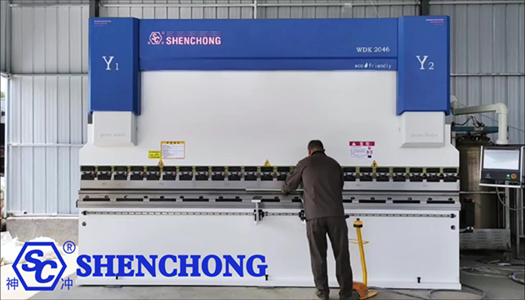

WDK 200T 4600MM Servo CNC Press Brake For Sale is a high-precision and high-efficiency plate processing equipment, mainly used for bending and forming metal plates such as carbon steel, stainless steel, aluminum alloy, etc. The equipment adopts a servo motor drive system to achieve precise control of the position, speed and pressure of the slider, and is widely used in sheet metal manufacturing, automobiles, cabinets, electricity, building curtain walls and other industries.

1. Main technical parameters of 200t 4600mm servo CNC press brake machine (reference configuration)

- Nominal pressure: 200 tons (2000kN)

- Bending length: 4600mm

- Column spacing: 3800mm ~ 4000mm (depending on the model)

- Throat depth: 400mm ~ 500mm

- Slider stroke: 250mm ~ 320mm

- Maximum opening height: 470mm ~ 520mm

- Y-axis repeat positioning accuracy: ±0.01mm

- X-axis stroke: 600mm (forward and backward movement)

- X-axis positioning accuracy: ±0.02mm

- R-axis stroke 200mm: (up and down movement)

- Workbench length: 4600mm

- Control system: ESA, SC EL, Delem, Cybelec, etc. are optional

- Main drive mode: full servo motor drive (hybrid)

- Number of rear stopper axes: 4+1 axis / 6+1 axis/8+1 axis optional

- Safety protection: light curtain/laser protector (such as MSD)

2. 200ton 4600 mm servo CNC bending machine structure

- Frame part: integral steel plate welding, heat treatment to relieve stress, strong rigidity and small deformation.

- Slider part: CNC control, electro-hydraulic synchronization or servo electric cylinder drive, high control accuracy.

- Workbench: built-in deflection compensation device to ensure the accuracy consistency of long plate bending.

- Back gauge system: adopts high-precision ball screw + linear guide drive, fast and accurate positioning.

- Hydraulic/servo system: adopts oil-electric hybrid servo press brake system, energy saving, low noise and fast response.

3. Performance and advantages of servo CNC bending machine

- High precision: Y-axis repeatability can reach ±0.01mm, meeting the needs of precision sheet metal

- Energy saving and environmental protection: servo system saves 30%~60% energy compared with traditional hydraulic

- Strong automation scalability: can be equipped with follow-up device, automatic mold change, robot, etc.

- Convenient operation: supports graphical programming and one-key bending process

- Strong adaptability: suitable for various materials and complex bending structural parts

4. Applicable scenarios and application scope

- Electrical control box/cabinet manufacturing

- Communication chassis, network equipment housing

- Precision sheet metal parts (such as stainless steel kitchenware, elevator panels)

- Architectural decorative aluminum plates, stainless steel decorative parts

- Agricultural machinery, rail transportation, aviation parts manufacturing, etc.

If you plan to use this bending machine for a specific process (such as thick plates, stainless steel, small batch and diversified bending, etc.), we can adjust the configuration according to your needs. We can also develop a customized technical solution for you (including molds, processes, and automation support).
