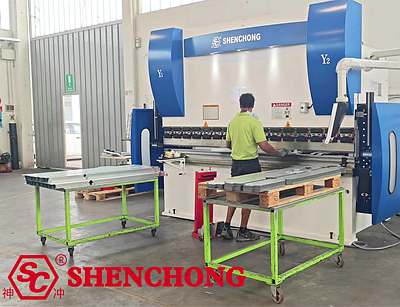

SHENCHONG Italy CNC Press Brake WEK 200Ton 3200mm 4+1 axis DA53T is a medium-to-large-sized, high-precision electro-hydraulic synchronous CNC bending machine. It has a rated bending pressure of 200 tons and a bending length of 3200mm.

It is widely used in sheet metal processing, electrical cabinets, steel structures, construction machinery, automotive parts, elevator manufacturing, rail transportation, environmental protection equipment, and the new energy industry.

This SC press bending machine combines electro-hydraulic synchronous control technology, the DA53T CNC system, and 4+1 axis automatic control functions. While ensuring high-precision bending, it also considers production efficiency and ease of operation, making it one of the mainstream configurations in the current sheet metal processing industry.

1. Basic Equipment Configuration Of SHENCHONG Italy CNC Press Brake For Sale

Equipment Model: WEK-200T×3200

Nominal Pressure: 200Ton（2000KN）

Bending Length: 3200mm

Structure: Electro-hydraulic synchronous CNC bending machine

CNC System: DA53T

Number of Control Axes: 4+1 Axis

Main Drive Method: Electro-hydraulic synchronization

Backgauge System: Ball screw + linear guide

Compensation System: CNC compensation (V-axis)

Encoding Feedback: Linear ruler closed-loop control

Applicable Sheet Metal: Carbon steel, stainless steel, aluminum plate, galvanized plate, etc.

2. 4+1 Axis Configuration Analysis

Y1 Axis: Controls the position of the left hydraulic cylinder.

Y2 Axis: Controls the position of the right hydraulic cylinder.

Y1 + Y2 form an electro-hydraulic synchronous control system, achieving high-precision synchronous operation of the slider.

X Axis: Controls the forward and backward movement of the back gauge.

Primarily determines the bending dimension.

Positioning accuracy up to: ±0.05mm

R Axis: Controls the up and down movement of the stop finger.

Suitable for processing workpieces of different heights.

Especially suitable for:

- Box-shaped parts

- Electrical cabinet parts

- Door panel parts

- Workpieces with multiple bends

V Axis (+1 Axis): Compensation axis for the worktable.

Function: Automatically compensates for machine body deflection.

Ensures:

- Consistent angles along the entire 3200mm bending line

- No angular deviation at both ends of long workpieces

The 4+1 axis configuration typically represents: Y1 + Y2 + X + R + V, which is a mainstream high-end configuration in the current market.

3. Introduction to the DA53T Control System

DELEM DA53T System (Netherlands)

The DA53T is one of the most widely used CNC systems in the global bending machine industry.

Main Features:

1) 10.1-inch Color Touchscreen

Industrial-grade touchscreen display.

Supports:

- Chinese

- English

- Multi-language

Simple and intuitive operation.

2) Graphical Programming

Operators only need to input:

- Sheet thickness

- Material

- Bending angle

- Die parameters

The system automatically calculates:

- Opening size

- Pressure

- Compensation amount

- Back gauge position

Greatly reduces the operational threshold.

3) Multi-step Bending Program

Supports:

- Single operation

- Multi-operation

- Complex parts

Can store a large number of product programs.

Suitable for mass production.

4) Die Database

Built-in:

- Upper die library

- Lower die library

- Material library

Automatically recalls processing parameters.

5) USB Interface

Supports:

- Program backup

- Parameter import

- Data recovery

Facilitates factory management.

6) Automatic Angle Correction

The system has a learning compensation function.

Automatic optimization during processing:

- Depth parameters

- Springback parameters

- Improves first-piece yield

4. Machine Frame Structural Advantages

Integral Steel Plate Welded Structure

Uses:

- Q235B/Q355 High-Quality Steel Plate

- Integral Welding

Features:

- High Strength

- Good Rigidity

- Strong Deformation Resistance

Stress Relief Treatment

Post-weld treatment includes:

- Tempering Treatment

- Vibration Aging Treatment

Eliminating internal stress.

Ensuring long-term stable accuracy.

Gantry Machining Center One-Stop Processing

Ensuring:

- Parallelism of Left and Right Side Plates

- Straightness of Worktable

- Slider Accuracy

Improving Equipment Lifespan.

5. Electro-hydraulic Synchronization System Advantages

Traditional Torsion Shaft Machine:

Synchronization via mechanical connection on both sides.

WEK Series adopts:

Electro-hydraulic servo synchronization technology.

Working Principle

Real-time detection by grating ruler:

Y1, Y2 position

Feedback to the DA53T system.

Real-time system adjustment:

Servo proportional valve.

Forming:

Full closed-loop control.

Advantages

- High Precision

Synchronization Accuracy: ±0.01mm

- High Speed

Real-time Response. Reduced waiting time.

- Long-term stability

No synchronization errors caused by mechanical wear.

Suitable for high-precision machining

Examples:

- Stainless steel products

- Elevator panels

- Medical equipment

- Precision cabinets

Get The Quotation

6. SC Italy CNC Press Brake 200T 3200mm Processing Capability Analysis

Carbon Steel Reference Capability:

Actual factors related to:

- Material strength

- Die selection

- Opening size

Stainless steel processing:

Stainless steel has high strength.

Typically: 200T bending capacity is approximately 70% of that of ordinary carbon steel.

Suitable for:

- 304 stainless steel

- 201 stainless steel

- Brushed sheet

- Mirror finish

7. Industry Application Analysis

Sheet Metal Chassis and Cabinets

Suitable for:

- Distribution cabinets

- Network cabinets

- Electrical control cabinets

Elevator Industry

Processing:

- Car panels

- Door panels

- Edge banding

Steel Structure Industry

Processing:

- Purlins

- Brackets

- Connecting plates

Construction Machinery

Processing:

- Excavator guards

- Frame components

- Structural components

New Energy Industry

Processing:

- Energy storage cabinets

- Photovoltaic brackets

- Battery enclosures

8. Summary of Core Competitive Advantages

Advantage 1: Wide Coverage of 200-ton Pressure Capacity

Suitable for:

- Thin and medium-thick plates

- Medium and thick plates

Multi-purpose machine.

Advantage 2: 3200mm Length Meets Mainstream Market Demand

Suitable for over 90% of sheet metal parts processing.

Advantage 3: DA53T Internationally Renowned Control System

Simple operation.

Short training cycle.

Convenient maintenance.

Advantage 4: 4+1 Axis Automatic Control

Achieves:

- Automatic positioning

- Automatic compensation

- Automatic calculation

Reduces reliance on manual labor.

Advantage 5: High Precision Electro-hydraulic Synchronization

Suitable for:

- High value-added products

- Bulk order production

Advantage 6: High Return on Investment

Compared to 6+1 axis and 8+1 axis models:

- Lower cost

- More comprehensive functions

- Wider applicability

The preferred configuration for most sheet metal companies.

Precision Bending·Intelligent Manufacturing · High-Efficiency Production

SHENCHONG Italy CNC Press Brake WEK 200Ton 3200 DA53T 4+1 Axis equipped with the Dutch DA53T intelligent control system and electro-hydraulic synchronization technology, achieves high-precision, high-efficiency, and high-stability modern bending processing. Its 3200mm working length covers mainstream sheet metal needs, and the hydraulic compensation system ensures consistent angles across the entire sheet. It is widely used in chassis and cabinet, steel structure, new energy, elevator, and construction machinery industries.
