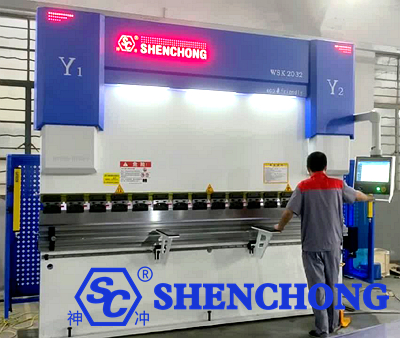

SHENCHONG WSK CNC press brake 200t 3200 equipped with the EL15T high-performance CNC system and 4+1-axis control, is a high-end model designed specifically for bending medium and thick plate metal.

This machine combines high precision, stability, and energy efficiency, and is widely used in the manufacture of sheet metal chassis, construction machinery, transportation, household appliances, kitchenware, stainless steel products, and structural components.

1. WSK CNC Press Brake 200T 3200MM Core Parameters

- Rated Pressure (Bending Force): 200 tons

- Working Length (Bending Length): 3200 mm

- Control System: EL15T CNC (Supports common features such as multi-step bending programs, graphical interface, offline editing/USB import)

- Axis Configuration: 4+1 Axis

- Travel Range: 200–300 mm

- Maximum Opening Height: 420–450 mm

- Back Gauge Stroke (X-Axis Travel): 600–1200 mm

- Repeatability: ±0.01–0.05 mm

- Hydraulic/Servo System: Optional servo pump control (energy-saving) or conventional electro-hydraulic

- Safety: Optional light barrier/safety fence, emergency stop, and CE safety features

2. Structure and Performance Features

- High-Strength Machine Body: Crafted from welded steel, annealed to eliminate stress and ensure long-term deformation resistance.

- Hydraulic Synchronization System: Electro-hydraulic servo control with independent Y1/Y2 control ensures slide synchronization.

- CNC Compensation: Automatically compensates for worktable deflection, ensuring full-length bending accuracy.

- High-Precision Back Gauge: Servo motor-driven, positioning accuracy of ±0.01 mm.

- Quick Fixture and Segmented Die: Convenient die change, suitable for processing a wide range of products.

- Safety Features: Infrared light barrier, emergency stop button, safety fence, etc.

- Energy-Saving Design: Optional servo pump-controlled hydraulic system reduces energy consumption by 30–50%, while also reducing noise and heat.

WSK CNC Press Brake 200T 3200 Advantages:

- Large tonnage + medium-to-long bending capacity → Meets most sheet metal processing needs.

- EL15T CNC system → Easy operation and intuitive programming.

- 4+1 axis configuration → Meets complex bending requirements.

- CNC compensation technology → High bending accuracy for long work pieces.

- Energy-saving, stable, and safe → Suitable for mass production and automation upgrades.

Get The Quotation

3. Typical Application Scenarios

- Sheet metal chassis, control cabinet panels, machine tool housings

- Bending structural parts (load-bearing parts require calculation based on material strength)

- Appliance housings, stainless steel decorative parts (depending on surface treatment and material)

- Small to medium-volume production lines (can be equipped with automated loading and unloading for continuous production)

4. Maintenance and Usage Recommendations (Extending life and maintaining accuracy)

- Replace hydraulic oil and filter elements according to manufacturer's schedule (initial maintenance typically 200–500 hours)

- Regularly inspect and calibrate backgauge positioning (X-axis) and Y-axis synchronization (weekly/monthly)

- Regularly inspect mold wear and alignment, and replace worn parts promptly

- Servo/electrical cabinets must be dust-proof and ventilated, properly grounded, and have a regulated power supply.

- Provide operator safety and basic programming training to reduce accidents caused by incorrect operation.

The WSK CNC press brake 200ton 3200mm is a medium-to-large hydraulic CNC press brake that combines precision, efficiency, and stability. It is particularly suitable for medium-volume processing of 4–7 mm carbon steel and stainless steel sheets and features excellent automation expansion capabilities.
