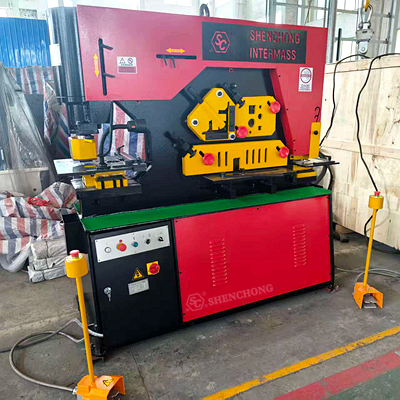

The Q35Y-20 hydraulic iron worker to Egypt is a multifunctional metal processing machine that integrates various functions such as punching, shearing, angle steel cutting, round/square bar cutting, and slotting (notching). It is widely used in industries such as steel structures, bridge construction, metal processing, machinery manufacturing, electrical equipment installation, and construction, making it an ideal machine for sheet metal and structural steel processing.
Model | Q35Y-20 |
Pressure (Ton) | 90 |
Max.cutting thickness (mm) | 20 |
Plate strength (N/mm2) | ≤450 |
Cutting angle (degree) | 8° |
Shearing size of one stroke (mm) | 20*330 |
Ram stroks (mm) | 80 |
Number of strokes (cpm) | 8 |
Throat depth (mm) | 355 |
Punching thickness (mm) | 20 |
Max.Punching diameter (mm) | 30 |
Power of main motor (kw) | 5.5 |
Overall dimensions (L*W*H) mm | 1860*800*1900 |
Weight of machine (kg) | 2500 |
This single ironworker machine integrates multiple functions, including punching, sheet metal cutting, profile cutting, and angle bending.
Multiple worktables are arranged front, back, and side, allowing simultaneous operation by multiple operators.
Utilizing a hydraulic system, the machine provides stable punching and cutting force, and smooth operation.
Compared to mechanical drives, it offers lower noise levels, less impact, and a longer lifespan.
Punching dies can be quickly changed, supporting various hole shapes (round, square, oblong, etc.).
Customized dies are available to meet specific needs.
Limit switches and safety guards are installed to ensure operator safety.
Foot pedal or manual operation options are available for flexibility.
The machine integrates multiple functions into a compact design with a small footprint.
Ideal for small to medium-sized factories and workshops.

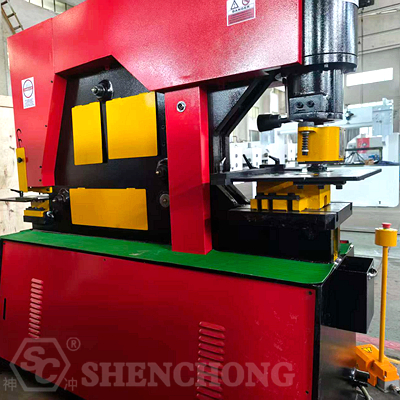

- Punching Station: Capable of punching round, square, and irregularly shaped holes.
- Flat Plate Shearing Station: Suitable for shearing steel plates and flat bars.

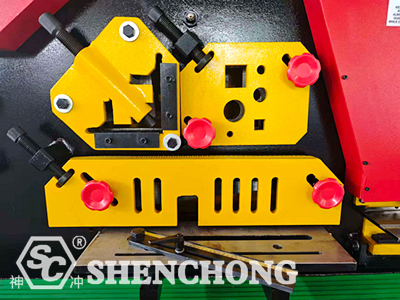

- Angle Iron Shearing Station: Specifically designed for cutting angle iron, producing clean cuts.
- Round/Square Bar Shearing Station: Ideal for quickly cutting round and square steel bars.
- Notching Station: Used for creating square, V-shaped notches in steel plates or for notching pipes.
- Optional Bending Unit: Allows for simple bending operations.
- Multi-functional design saves on equipment investment and workshop space.
- Powerful hydraulic system suitable for high-volume production.
- Simple operation, suitable for operators of varying skill levels.
- High stability and easy maintenance.
