Egypt - Cable Tray Automatic Bending CNC Press Brake
Time:2023-06-28
Visits:342

Egyptian customer ordered an automatic press brake bending machine for cable tray. Cable Tray Automatic Bending CNC Press Brake has been shipped to Egypt and has been adjusted well. Due to the design with magnetic positioning and side discharge, this CNC press brake can automatically bend, which is very suitable for the processing of cable tray work pieces.

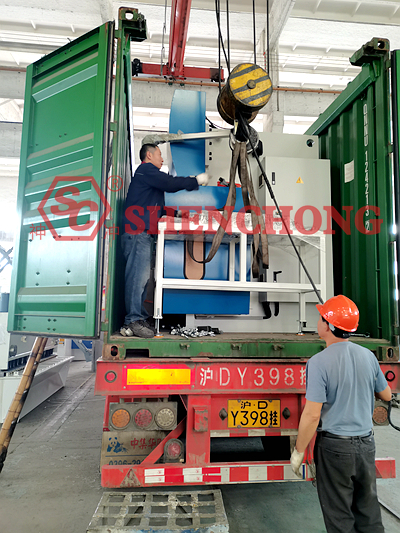

Egypt CNC press brake machine

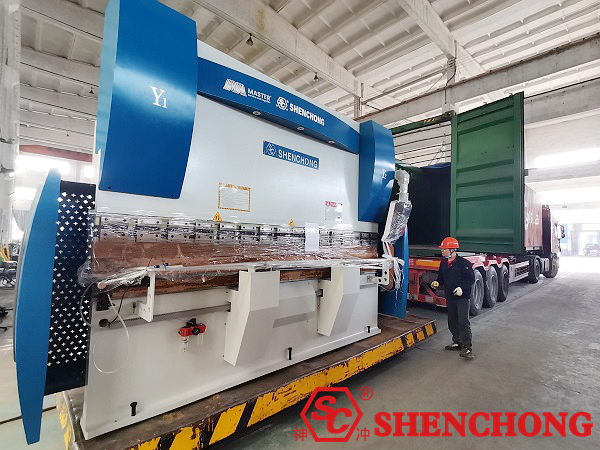

Egypt CNC press brake machine


Cable Tray Automatic Bending CNC Press Brake Egypt


Egypt CNC Press Brake Parameter:

TYPE

           WEK-160/3200 (ESA-S630)

SR.NO.

ITEM

UNIT

SPECIFICATION

1

Nominal Pressure

kN

1600

2

Length of Table

mm

3200

3

Distance Between housings

mm

2660

4

Throat Depth

mm

400

5

Stroke

mm

200

6

Open Height

mm

470

7

Main Motor

kW

15

8

Approach speed

mm/s

180

9

Axis (4+V)


Y1,Y2,X,R+V

10

Y1,Y2 parallel tolerance

mm

±0.01

11

X precision

mm

±0.015

12

X movable distance

mm

5-1000

13

R precision

mm

±0.03

14

R movable distance

mm

200

15

Overall Dimensions

(L*W*H)

mm

3760x1830x2620

16

Weight

T

10.2



Cable Tray Automatic Bending Front Support:

With cable tray automatic bending front support, you can obtain automatic bending of cable tray sheet metal work pieces. Features: adopt magnetic positioning and automatic side discharge.
