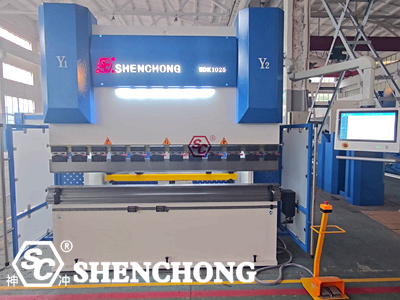

SHENCHONG 100T 2500mm hybrid press brake 7+1 axis is a mid-to-high-end intelligent sheet metal bending equipment. It employs a hybrid drive technology combining servo motors and a hydraulic system, balancing high precision, energy efficiency, and stability. It is particularly suitable for the production of medium-thick plates, high-precision bending processes involving multiple steps.

This model has a rated bending force of 100Ton (1000kN) and an effective bending length of 2500mm. It can be widely used in: stainless steel chassis and cabinets, electrical cabinets, automotive sheet metal, elevator sheet metal, precision sheet metal structural parts, and small-batch, high-precision production. The hybrid hydraulic system uses servo motors for on-demand oil supply, significantly reducing energy consumption and improving response accuracy compared to traditional hydraulic bending machines.

1. Main Technical Parameters (100T/2500 Reference Standard)

- Nominal Pressure: 1000 kN (100 tons)

- Bending Length: 2500 mm

- Column Spacing: ≈2000 mm

- Throat Depth: 320–400 mm

- Slider Stroke: 200 mm

- Opening Height: 450–460 mm

- Fast Downward Speed: 180–240 mm/s

- Feed Speed: 10–15 mm/s

- Return Speed: 160–220 mm/s

- Main Motor Power: 7.5–11 kW (Servo)

- Weight: 6–7.5 tons

The above is the standard range for mainstream 100T 2500mm hybrid press brake models in the industry

2. Features of the 100t 2500mm Hybrid Press Brake 7+1 axis

① Servo-driven hybrid electric-hydraulic system, saving 50% energy

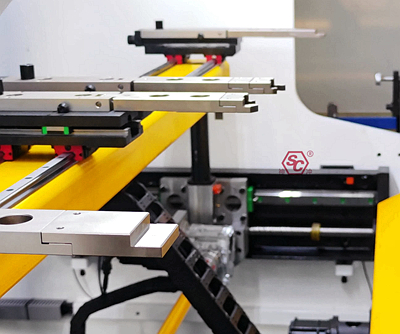

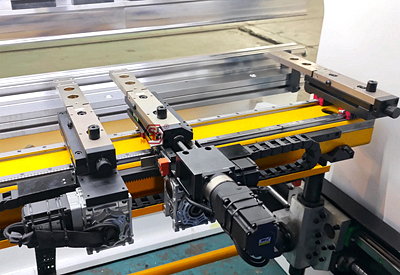

② 7+1 axis high-precision bending

③ 2500mm universal length, suitable for 90% of sheet metal parts

④ High-end CNC system, intelligent programming

⑤ Low noise, low oil temperature, long service life

⑥ Supports complex multi-process continuous bending

3. Hybrid Electric Drive System (Core Highlights)

Hybrid Drive Working Principle

Hybrid electric bending machine = Servo motor + Variable pump + Hydraulic actuator

Operating Logic:

- Servo motor precisely controls oil pump speed

- Outputs flow and pressure as needed

- Achieves high-response closed-loop control

Advantages:

- 30%–50% energy saving compared to traditional hydraulic systems

- Power consumption only during operation, almost zero energy consumption in standby

- Low oil temperature, more stable system

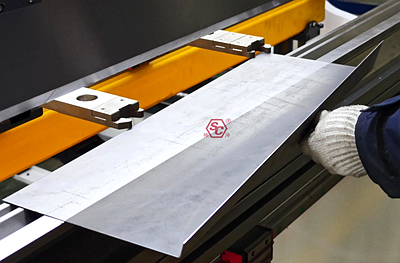

4. Processing Capacity Analysis

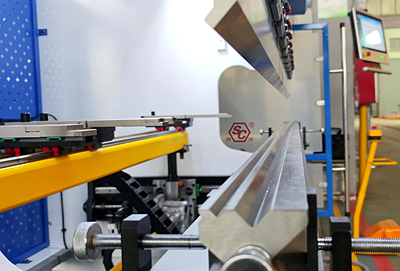

The 100T×2500mm CNC press brake machine is suitable for bending (reference):

- Carbon steel: 6–8 mm (whole plate)

- Stainless steel: 3–5 mm

- Aluminum plate: 8–10 mm

(Specific dimensions depend on V-groove and die)

This tonnage is suitable for medium and heavy plate sheet metal processing and can also handle the production of precision parts and structural components.
