SHENCHONG WEK 350 Tons 6000mm Hydraulic CNC Press Brake Machine For Sale
Time:2023-05-04
Visits:409

WEK 350 Tons 6000mm Hydraulic CNC Press Brake For Sale


SHENCHONG WEK 350 Ton 6000mm cnc hydraulic press brake machine for sale with ESA S630 Controller, 4+1 axis (Y1, Y2, X, R, V axis).

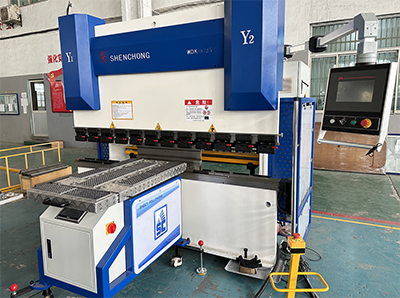

350tons 6000mm cnc press brake for sale

350 tons 6000mm cnc press brake backgauge


SHENCHONG 350T/6000MM CNC Press Brake Main Features

To meet customers' bending requests, SHENCHONG announce WEK Serie CNC Hydraulic Press Brake Machine, which has become the most popular CNC Press Brake machine for sale in the global market. WEK Serie press brake is equipped with a touch-screen graphic programing CNC controller and is available in 4 axes in total with 2 axes back gauge. WEK Serie is intended and designed for customers looking for the basics and ease of use.

- The fuselage adopts integral welding and integral processing structure.

- Adopting the closed-loop control method composed of German electro-hydraulic servo valve and grating ruler, the slider position feedback accuracy is high, the operation is accurate and stable, the synchronization performance is good, and the bending accuracy is high.

- The CNC control system can realize the functions of bending angle graphic programming, angle correction compensation,automatic calculation and automatic adjustment of bending pressure, automatic calculation of the deformation compensation amount of the working table, the unfolded length of the work piece, and the automatic back gauge of the back gauge.

- ESA S630 controller controls the backgauge, which can continuous bend the complex workpiece

- 350 ton cnc press brake use punch adapter for large press brake upper punch

350 ton 6000mm CNC press brake punch adapter


WEK 350T6000MM Press Brake Machine Technical Parameters:

- Nominal Pressure: 350 Tons

- Length of Table: 6000mm

- Distance Between housings: 4800mm

- Throat Depth: 400mm

- Stroke: 300mm

- Open Height: 605mm

- Main Motor: 30kw

- Approach speed: 100mm/s

- Axis(4+V): Y1, Y2, X, R +V

- Y1,Y2 parallel tolerance: ±0.01mm

- X precision: ±0.015mm

- X movable distance: 5-1000mm

- R precision: ±0.03mm

- R movable distance: 200

- Overall Dimensions: 6600x2350x3800mm

- Weight: 30 Tons


CNC axis description:

Y1, Y2 axis—controls the CNC axes of the cylinders on both sides. The X-axis controls the back gauge and forth of the back gauge, the R-axis controls the back gauge up and down, the Z1,Z2 axis control the back gauge finger left and right, and the V-axis table is CNC crowning.


WEK 350T x 6000MM CNC Hydraulic Press Brake Machine Details

- Movable front arm support

- Double linear guide of the backgauge

- 2 pieces standard rear stop fingers

- Linear magnectic scale from German

- Standard 4 axes controlled by CNC


350 tons 6000mm CNC press brake machine details

350 Tons 6000mm CNC Press Brake Configuration

WEK CNC Press Brake Hydraulic Parts:

- Magnetic scale (ELGO Germany)

- Valve unit (ARGO-HYTOS Germany)

- Gear pump (SUNNY USA)

- Ferrule connector (EMB Germany)

- Sealing ring (SKF Sweden)


350 tons 6000mm cnc press brake hydraulic parts


WEK 350T6000MM Electrical Parts:

- ESA S630 CNC controller (Touch Screen from ESA Italy)

- Main motor (SIEMENS)

- V axis table crowning (CNC controlled)

- Backgauge servo motor (DELTA Taiwan)

- Electrical components (Schneider France)

- Movable foot pedal for esay operation and emergency power off function


350 tons 6000mm cnc press brake electrical parts


Safety Protection of CNC Press Brake

- Shenchong CNC press brake standard safety protection includes:

- Side protection and back door protection

- Electrical cabinet with ABB switch power off device

- Fan in the electrical box prevent overheating

- Cooling device to prevent overheating of oil tank


350 Tons cnc press brake safety protection


OPTIONAL:

Press Brake Bending Follower

SHENCHONG 300KG sheet follower special design for heavy duty press brake to easy support the sheet metal plate. 300KG sheet follower is perfect suitable for 300 ton press brake to ensure the bending security and save labor cost.


300kg bending follower for press brake


ESA S630 Controller

ESA S630 for CNC press brake

- High-definition 10-inch TFT color touch screen

- Built-in PLC

- 2D graphics programming

- Expansion length calculation

- Graphic upper and lower molds, support multilateral molds, telescopic molds, arc molds, goose-neck molds and other molds

- Graphic programming automatic and manual optimization

- Support simulated bending

- Support graphic or numerical arc bending

- Support dual-machine linkage function, no need to purchase additional synchronization card

- The form-filling programming mode of real-time automatic check, automatic calculation of bending and compensation force

- Manual bending items (single-step bending, no program interruption)

- All programs, molds, and parameters can be saved in the local memory or U disk; these data can be uploaded to other CNC or PC via U disk

- Special functions such as user-defined alarm information function

- Provide programming function of control axis and other auxiliary functions

- It can drive hydraulic shaft with proportional valve or servo valve, AC/DC servo driver, AC motor with frequency converter or without frequency converter, and can drive the most common field bus (ESALINK...)

- Interface connection of front support, thickness detection, angle measuring instrument and manipulator

- Safety PLC communication function (PILZ, LAZER SAFE)


We also provide other CNC controller option: DELEM, CYBLEC, ELGO... Welcome to contact with our sales for more machine details.



SHENCHONG After-Sale Service

As a professional CNC press brake machine manufacturer, Shenchong always focus on customers' satisfaction.

  • We will arrange for engineers and installers to go to the site for installation, commissioning and training, which is about 3 days. Or you can arrange for people to come and study.

  • The warranty period of the machine is 13 months, including one month in shipping.

  • If there is any problem, we will first check the machine problem through video and guide the repair. If it still cannot be solved, an employee will be sent to the site for repair.

  • During the warranty period, non-human damage, parts damage shall be responsible by the seller.
