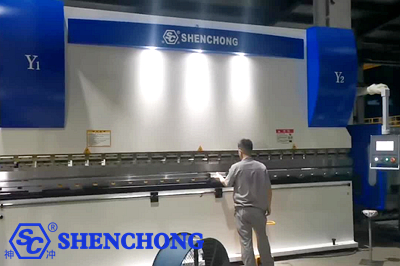

SHENCHONG 300t 5100mm CNC Press Brake WEK 4+1 axis ESA S630 is a medium to large-sized hydraulic CNC bending machine for sheet metal. Its core features can be summarized as follows: 300-ton rated bending force + 5100mm ultra-long bending length + electro-hydraulic synchronous control + Y1/Y2 independent control + X/R dual-axis back gauge + ESA S630 graphic CNC system + CNC mechanical compensation.

This configuration is particularly suitable for production scenarios requiring long-dimension, high-tonnage bending, such as steel structures, engineering machinery, automobile manufacturing, pressure vessels, ventilation equipment, chassis and cabinets, heavy sheet metal, construction machinery, and large metal structural components.

1. Basic Parameters Of SC 300T 5100MM CNC Press Brake

The 300TX5100mm is not an ordinary small sheet metal press brake bending machine, but a CNC bending machine clearly geared towards processing long, medium-to-heavy sheet metal.

Where it is located:

- 300 tons: Represents the maximum nominal bending force of the machine, approximately 3000kN

- 5100mm: Represents the effective worktable length, approximately 5.1 meters

- WEK: Machine series

- 4+1 axes: Refers to Y1, Y2, X, R + V

- ESA S630: Italian ESA series 2D graphical CNC system

- Y1/Y2: Independent synchronous control of left and right hydraulic cylinders

- X-axis: Back gauge forward and backward movement

- R-axis: Back gauge up and down movement

- V-axis: Worktable mechanical deflection compensation

The ESA S630 itself is positioned as a 4-axis graphical CNC system, with standard configuration supporting Y1/Y2/X/R, and features automatic bending force calculation, compensation calculation, die library, angle correction, and other functions.

2. Detailed Introduction of the ESA S630 Control System

The ESA S630 is another core component of this configuration.

It features:

- 10-inch color touchscreen

- The S630 uses a 10-inch touchscreen display

- Supports 2D graphical programming

- Y1/Y2/X/R four-axis control

- Bending force and compensation calculation

- Die management and angle correction functions, etc.

Its core advantages are:

Simple operation + Graphical programming + 4-axis control + Automatic calculation + Good stability.

3. Main Application Industries

1) Construction Machinery Industry

Typical Workpieces:

- Excavator structural components

- Loader structural components

- Construction machinery skid plates

- Support structures

- Connecting plates

Recommended Selling Point:

300-ton high pressure, meeting the bending requirements of medium and thick plates and high-strength structural components in construction machinery.

2) Steel Structure Industry

Suitable for:

- Building steel structures

- Steel components

- Support components

- Connecting components

- Metal building components

Especially suitable for long-length bending.

3) Vehicle Manufacturing Industry

Applications:

Trucks, Trailers, Semi-trailers, Engineering Vehicles, Special Vehicles

Typical Advantages:

A 5100mm long working area reduces secondary processing of large vehicle structural components.

4) Power Equipment Industry

Examples:

Distribution cabinets, Electrical cabinets, Power distribution boxes, Cable equipment, Transformer equipment structural components

5) Environmental Protection Equipment Industry

Examples:

Dust removal equipment, Environmental protection enclosures, Sewage treatment equipment, Waste treatment equipment, Large equipment housings

6) Large Machinery Manufacturing Industry

Examples:

Machinery housings, Conveying equipment, Industrial frames, Equipment bases, Large sheet metal structural components

7) Metal Door Industry

Examples:

Fire doors, Industrial doors, Metal door panels, Door frames, Large door structures

4. Advantages and Features Summary

- 300-ton Powerful Bending Force + 5100mm Extra-long Working Length

SHENCHONG 300t 5100mm CNC Press Brake is specifically designed for processing large, medium-thick plates and long metal structural parts. The 300-ton high pressure provides ample bending capacity, while the 5100mm extra-long working length meets the processing needs of large sheet metal, reducing repeated clamping, flipping, and secondary positioning of large workpieces, making large sheet metal processing more efficient.

- Y1/Y2 Synchronous Control + X/R CNC Backgauge + CNC V-axis Deflection Compensation

The equipment adopts dual-cylinder synchronous control technology, achieving synchronous left and right movement of the slider through Y1/Y2. X+R CNC backgauge provides precise positioning. the CNC V-axis compensation system compensates for the deflection of the worktable generated during long-length bending, resulting in a more stable and uniform bending effect for the workpiece in different positions.

- ESA S630 2D Graphical CNC System

Equipped with the ESA S630 CNC system, this system transforms complex bending processes into standardized digital programs through graphical programming, workpiece and mold management, bending force calculation, compensation calculation, and angle correction. It is suitable for industries such as engineering machinery, steel structures, vehicle manufacturing, power equipment, environmental protection equipment, and large sheet metal manufacturing.
