SHENCHONG 250T 4000MM CNC hydraulic press brake for sale is designed for efficient forming of medium to large-sized sheet metal, balancing precision, efficiency, and stability.

Equipped with the EL15T intelligent CNC system and a 4+1 axis control structure, it achieves Y1/Y2 closed-loop synchronous control, X/R automatic positioning, and V-axis deflection compensation, ensuring one-time forming of complex workpieces and high consistency.

Widely used in cabinet, elevator, steel structure, and precision sheet metal applications, it is a core piece of equipment for achieving high-efficiency, low-labor, and stable quality production.

1. SHENCHONG 250T 4000MM CNC Hydraulic Press Brake For Sale Equipment Overview

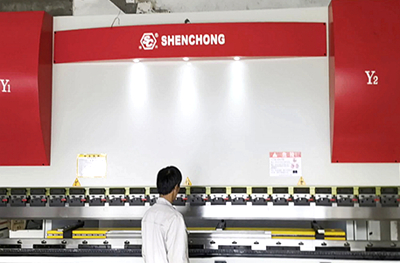

SHENCHONG WEK-250T 4000MM EL15T 4+1 axis CNC hydraulic press brake machine is a medium to large-sized, high-precision electro-hydraulic synchronous CNC bending machine.

Suitable for:

- Medium and heavy plate processing

- Large workpieces (4-meter range)

- High-precision continuous bending processes

Core features:

- Electro-hydraulic servo synchronous control

- 4+1 axis CNC system

- EL15T intelligent control system

- High rigidity structure + automatic compensation

A typical industrial-grade main model / mainstream configuration model for export

2. SC 250T 4000MM CNC Press Brake Core Technical Parameters

250T 4000MM CNC Press Brake Parameter Table (Standard Reference):

Stable Machining Capabilities:

- Carbon Steel 6–12mm

- Stainless Steel 3–8mm

3. Core Structure and Configuration

1) Frame Structure

- Integral steel plate welding

- Tempering/vibration stress relief

- High rigidity design

Guarantees:

- Long-term use without deformation

- Stable precision

2) Electro-hydraulic Synchronization System

- Servo valve + grating ruler closed-loop control

- Real-time position feedback

Advantages:

- High synchronization accuracy

- Good bending angle consistency

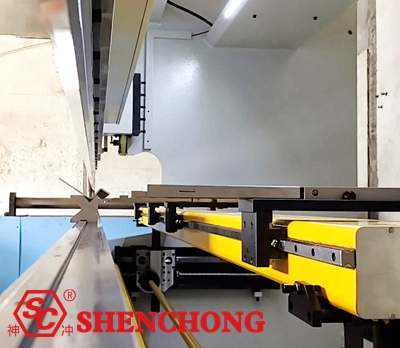

3) Back gauge System (X+R)

- Servo motor drive

- Ball screw + linear guide

Features:

- High-speed positioning

- Automatic switching

4) Deflection Compensation System (V-axis)

Mechanical or hydraulic compensation

Function:

- Eliminates mid-section collapse of long workpieces

- Improves straightness

5) Hydraulic System

- Integrated hydraulic design

- Stable, low failure rate

High-end version:

- Servo energy-saving system (energy saving 30~60%)

4. Performance Advantage Summary (Customer Concerns)

✔ Precision Advantages

- Electro-hydraulic synchronous closed-loop control

- Automatic compensation

- Suitable for precision parts machining

✔ Efficiency Advantages

- Multi-step continuous bending

- Automatic back gauge positioning

- Increased efficiency by 30%+

✔ Simple Operation

- Graphical programming

- Automatic parameter calculation

✔ High adaptability

Machining:

- Carbon steel / Stainless steel / Aluminum plate

- Enclosures / Cabinets / Sheet metal parts

✔ Stable and durable

- Heavy-duty frame

- Industrial-grade control system

5. Typical Application Industries

Widely used in:

- Sheet metal processing

- Electrical cabinets / Cabinets

- Construction machinery

- Automotive parts

- Steel structures

- Elevator manufacturing

- Kitchen equipment

Especially suitable for: Main equipment in medium and large sheet metal factories
