The SC QC11KQ-16x2500MM front-feeding shearing machine cobalt plate shearing unit has been installed and debugged in the customer's factory. Wuxi Shenchong has many years of experience in the production and sales of processing equipment in the cobalt and nickel plate shearing industry. The SC front-feed guillotine shear is very suitable for large-scale cutting production of cobalt and nickel plates.

1. Advantages and features of QC11KQ-16x2500MM front feeding shearing machine cobalt plate shearing unit

The front feeding shearing machine is a device that uses an automatic device to send the plate to the designated position for shearing before shearing.

Main advantages:

- High degree of automation

The front feeding system is usually composed of servo motor + linear guide + suction cup clamping device or roller propulsion mechanism, which realizes accurate and automatic feeding of the plate and greatly reduces manual intervention.

- Accurate positioning

With CNC system (such as E21S, EL15T, etc.), millimeter-level high-precision feeding can be achieved, with small shearing error and good consistency of finished products.

- Improve efficiency

Automatic feeding saves manual alignment time, suitable for medium and large batch continuous shearing operations, and significantly improves production capacity.

- Save manpower

Reduce the operating intensity of workers, one person can operate multiple equipment, and effectively reduce labor costs.

- Improve the quality of finished products

The plate is stably fed in by the front feeding system to avoid poor shearing caused by human sliding and deflection.

Technical features:

- Intelligent control system

Adopting PLC or touch screen control system, multiple groups of cutting lengths and quantities can be preset to realize fully automatic workflow.

- Servo motor drive

High-speed response, precise control of feeding stroke and speed, adapting to different plate specifications and materials.

- Flexible and customizable structure

Adaptive devices for feeding length (such as 2500mm, 3000mm, etc.) and plate thickness (4mm, 6mm, 8mm, etc.) can be customized according to customer needs.

- High feeding repetition accuracy

Precision guide rail + ball screw or chain feeding mechanism ensures smooth feeding, with repetition accuracy up to ±0.2mm.

- Strong adaptability

Can be used with hydraulic shearing machine, guillotine shearing machine, flying shear line to build flexible shearing unit or automatic production line.

2. Shenchong automated shearing technology

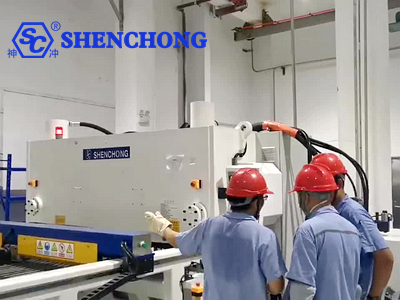

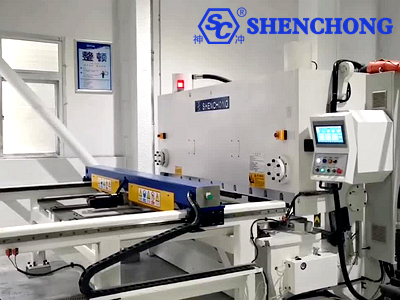

Shenchong engineers debugged a front-feed shearing machine QC11KQ-16x2500MM on site for batch processing and production of cobalt plates.

The customer needs to cut the large cobalt plates into narrow strips first, and then cut the strip cobalt plates into small pieces. Therefore, the customer purchased 4 sets of front-feed shearing machine units for production. This cobalt plate shearing unit uses manual feeding to the front feeding platform. After that, the front-feed shearing machine will perform automatic cutting. After the cutting is completed, the workers will sort and collect the work.

We also have an automated production line with truss suction cup feeding, conveyor roller line and robot arm sorting. According to your plate information, factory layout and production requirements, Shenchong can customize a single production unit or a complete production line for automated cobalt plate shearing. We have an experienced engineering and sales team to provide you with professional and detailed communication. We have our own independent R&D and production team to ensure the quality and performance of the machine.
